Description:Support is limited to customers who have already adopted these products.The ISL22313 integrates a single digitally controlled potentiometer (DCP), control logic and non-volatile memory on a monolithic CMOS integrated circuit. The digitally controlled potentiometer is implemented with a combination of resistor elements and CMOS switches. The position of the wipers are controlled by the user through the I2C bus interface. The potentiometer has an associated volatile Wiper Register (WR) and a non-volatile Init
Renesas provides a recommended PCB layout guide in their application note AN1965, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
To ensure reliable operation over the full temperature range, it's essential to follow the recommended operating conditions, including voltage and current ratings, and to implement proper thermal management, such as heat sinking and airflow, to keep the device within its specified temperature range.
The ISL22313TFU10Z has built-in ESD protection diodes on all pins, and the device is designed to prevent latch-up. However, it's still important to follow proper ESD handling and PCB design practices to prevent damage during handling and assembly.
Yes, the ISL22313TFU10Z is suitable for high-reliability and safety-critical applications, such as automotive, industrial, and medical devices. However, it's essential to follow Renesas' guidelines for reliability and safety, and to perform thorough testing and validation to ensure the device meets the specific application requirements.
Renesas provides radiation tolerance and susceptibility specifications for the ISL22313TFU10Z in their radiation report, which includes information on total ionizing dose (TID), single event effects (SEE), and neutron radiation. Contact Renesas for more information.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL22313TFU10Z Overview

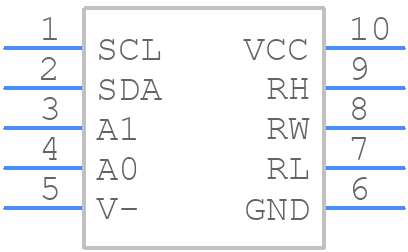

Use the download button to access the ISL22313TFU10Z schematic symbol, PCB footprint, and 3D model.
