Description:The ISL22346WMVEP integrates four digitally controlled potentiometers (DCP) and non-volatile memory on a monolithic CMOS integrated circuit. The digitally controlled potentiometers are implemented with a combination of resistor elements and CMOS switches. The position of the wipers are controlled by the user through the I2C bus interface. Each potentiometer has an associated volatile Wiper Register (WR) and a non-volatile Initial Value Register (IVR) that can be directly written to and read by the user. The
Renesas provides a recommended PCB layout guide in their application note AN1965, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
To ensure reliable communication, it is recommended to follow the SPI protocol guidelines, use a pull-up resistor on the CS pin, and implement error checking and handling mechanisms in the firmware. Additionally, ensure that the clock frequency and data transmission rates are within the specified limits.
The ISL22346 is rated for operation from -40°C to +125°C, but it's essential to consider the derating curves for output current and voltage regulators to ensure reliable operation across the entire temperature range.
Yes, the ISL22346 is designed to operate in high-vibration environments. However, it's crucial to ensure that the PCB is properly secured and that the device is properly soldered to the board to prevent mechanical stress and vibration-induced failures.
Renesas provides a troubleshooting guide in their application note AN1966, which covers common issues, such as output voltage errors, communication errors, and thermal shutdowns. Additionally, using an oscilloscope and logic analyzer can help identify and debug issues.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL22346WMVEP-TK Overview

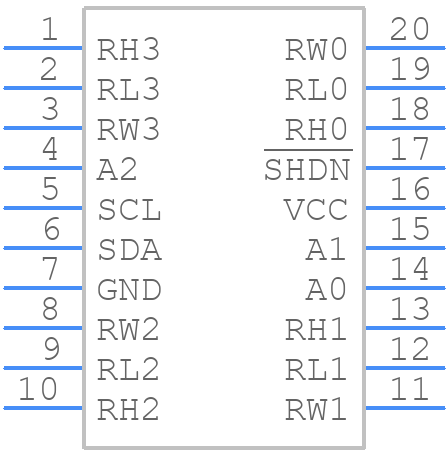

Use the download button to access the ISL22346WMVEP-TK schematic symbol, PCB footprint, and 3D model.
