Description:The ISL22346WMVEP integrates four digitally controlled potentiometers (DCP) and non-volatile memory on a monolithic CMOS integrated circuit. The digitally controlled potentiometers are implemented with a combination of resistor elements and CMOS switches. The position of the wipers are controlled by the user through the I2C bus interface. Each potentiometer has an associated volatile Wiper Register (WR) and a non-volatile Initial Value Register (IVR) that can be directly written to and read by the user. The
Renesas provides a recommended PCB layout guide in their application note AN1965, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
To ensure reliable operation over the full temperature range, it's essential to follow the recommended operating conditions, including voltage, current, and thermal management. Additionally, consider using thermal protection devices and implementing over-temperature protection in your design.
The ISL22346WMVEP is designed to meet EMI and RFI standards, but it's still important to follow good design practices, such as using shielding, filtering, and grounding techniques to minimize electromagnetic interference and radio-frequency interference.
The ISL22346WMVEP is designed to operate in a variety of environments, including those with high vibration. However, it's essential to follow proper mounting and soldering techniques to ensure reliable operation. Additionally, consider using vibration-resistant components and designing your system to withstand mechanical stress.
Renesas provides a troubleshooting guide in their application note AN1966, which includes common issues, symptoms, and solutions. Additionally, consider using debugging tools, such as oscilloscopes and logic analyzers, to identify and resolve issues.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL22346WMVEP Overview

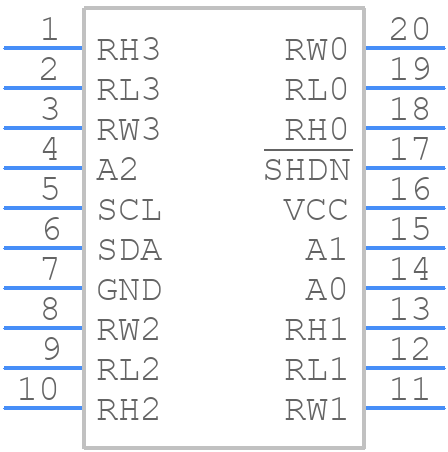

Use the download button to access the ISL22346WMVEP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL22,
or try a keyword search, such as Digital Potentiometers
