ISL22444WFV20Z - Renesas Electronics

Description: RENESAS - ISL22444WFV20Z - Non Volatile Digital Potentiometer, 10 kohm, Quad, Serial, SPI, Linear, ± 20%, 2.25 V

Download ISL22444WFV20Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

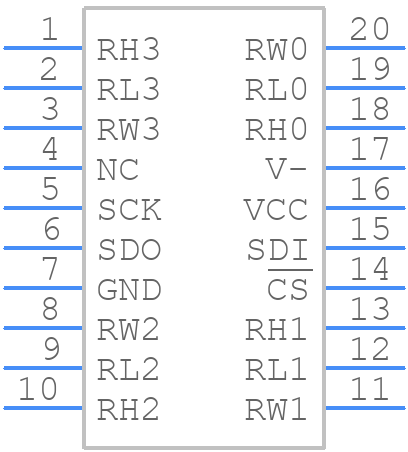

ISL22444WFV20Z - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL22444WFV20Z - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - M20.173
click to zoom
3D Models
ISL22444WFV20Z - Renesas Electronics - 3D model - Small Outline Packages - M20.173
click to zoom

ISL22444WFV20Z Details

  • Manufacturer Part Number:

    ISL22444WFV20Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    TSSOP-20

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Bandwidth-Nom:

    1 kHz

  • Control Interface:

    3-WIRE SERIAL

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Number of Functions:

    4

  • Number of Positions:

    256

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    20%

  • Resistor Terminal Voltage-Max:

    5.5 V

  • Resistor Terminal Voltage-Min:

    -2.25 V

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    2 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Coefficient-Nom:

    85 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Total Resistance-Nom:

    10000 Ω

  • Width:

    4.4 mm
