Description:The ISL26102 and ISL26104 provide a low-noise programmable gain amplifier along with a 24-bit Delta-Sigma Analog-to-Digital Converter with two channel (ISL26102) or four channel (ISL26104) differential, multiplexed inputs. The devices feature exceptional noise performance for conversion rates ranging from 2. 5Sps to 4kSps. The on-chip low-noise programmable-gain amplifier provides gains ranging from 1 to 128, which supports ±19. 5mVFS from a 5V reference. The high input impedance allows direct connection of
A good PCB layout for the ISL26102AVZ-T involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and parasitic inductance. Renesas provides a recommended PCB layout in the datasheet and application notes.
To ensure accurate voltage measurement, it's essential to follow proper layout and routing guidelines, use a low-noise power supply, and minimize noise coupling into the device. Additionally, calibrate the device according to the datasheet recommendations and use a high-precision voltage reference if required.
The ISL26102AVZ-T has an operating temperature range of -40°C to +125°C, but it's essential to note that the device's accuracy and performance may degrade at extreme temperatures. Consult the datasheet for temperature-related specifications and derating information.
While the ISL26102AVZ-T is a robust device, it's still susceptible to vibration and shock. To ensure reliable operation in such environments, consider using a vibration-resistant mounting method, such as a screw-down or adhesive mounting, and follow proper PCB design and assembly guidelines.
To troubleshoot issues with the ISL26102AVZ-T, start by reviewing the datasheet and application notes, then check the device's power supply, clock, and input/output connections. Use a logic analyzer or oscilloscope to verify signal integrity and timing. If issues persist, consult Renesas' technical support resources or contact a local representative.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL26102AVZ-T Overview

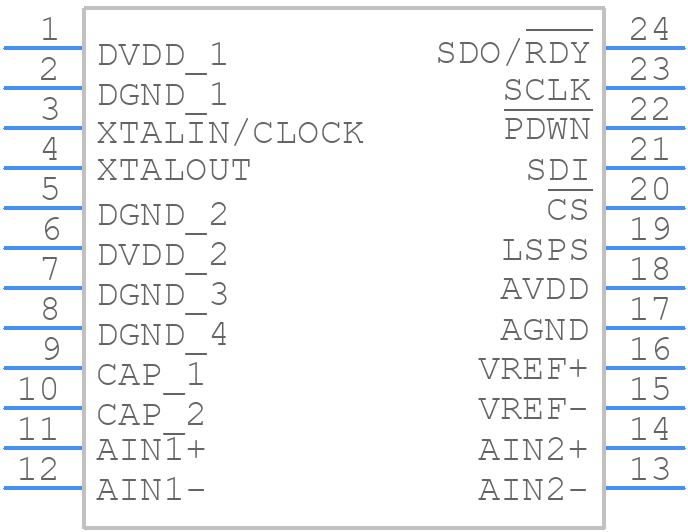

Use the download button to access the ISL26102AVZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL26,
or try a keyword search, such as Analog to Digital Converters
