ISL26104AVZ - Renesas Electronics

Description: The ISL26102 and ISL26104 provide a low-noise programmable gain amplifier along with a 24-bit Delta-Sigma Analog-to-Digital Converter with two channel (ISL26102) or four channel (ISL26104) differential, multiplexed inputs. The devices feature exceptional noise performance for conversion rates ranging from 2. 5Sps to 4kSps. The on-chip low-noise programmable-gain amplifier provides gains ranging from 1 to 128, which supports ±19. 5mVFS from a 5V reference. The high input impedance allows direct connection of

Download ISL26104AVZ Model
Schematic

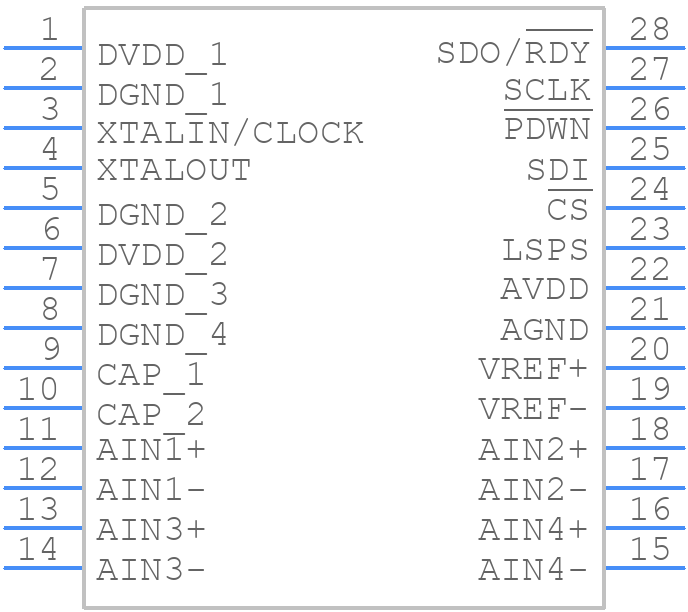

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ISL26104AVZ - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - 28 Ld TSSOP
click to zoom
3D Models
ISL26104AVZ - Renesas Electronics  - 3D model - Small Outline Packages - 28 Ld TSSOP
click to zoom

ISL26104AVZ Details

  • Manufacturer Part Number:

    ISL26104AVZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    M28.173

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Factory Lead Time:

    4 Weeks

  • Date Of Intro:

    2017-10-19

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Analog Input Voltage-Max:

    2.5 V

  • Analog Input Voltage-Min:

    -2.5 V

  • Conversion Time-Max:

    250 µs

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Linearity Error-Max (EL):

    0.001%

  • Moisture Sensitivity Level:

    2

  • Number of Analog In Channels:

    4

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.004 MHz

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    12 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

ISL26104AVZ Frequently Asked Questions (FAQs)

  • Renesas provides a recommended layout and placement guide in the application note AN1443. It suggests keeping the input and output traces short and away from each other, using a solid ground plane, and placing the device close to the power source.
  • To optimize performance in a noisy environment, use a low-ESR capacitor (e.g., ceramic or film capacitor) for the input and output capacitors, and consider adding a noise filter or a ferrite bead in series with the input voltage. Additionally, ensure good PCB layout practices, such as separating analog and digital grounds.
  • Although the datasheet specifies a maximum input voltage of 5.5V, the device can handle up to 6V for short periods (e.g., during power-up or voltage transients). However, sustained operation above 5.5V may reduce the device's lifespan or cause damage.
  • The ISL26104AVZ is rated for operation up to 125°C, but its performance and lifespan may be affected at high temperatures. Consider derating the output current and using a heat sink or thermal management techniques to ensure reliable operation.
  • Common issues can be caused by poor PCB layout, inadequate input and output capacitors, or incorrect component selection. Check the application note AN1443 for troubleshooting guidelines, and consider using a scope or signal analyzer to diagnose the issue.
