ISL267440IUZ - Renesas Electronics

Description: The ISL267440 and ISL267450A are 10-bit and 12-bit, 1MSPS sampling SAR-type ADCs featuring excellent linearity over supply and temperature variations. These devices are drop-in compatible with the AD7440 and AD7450A. The robust, fully-differential input offers high impedance to minimize errors due to leakage currents, and the specified measurement accuracy is maintained with input signals up to the supply rails. The reference accepts inputs from 0. 1V to 2. 2V for 3V operation and 0. 1V to 3. 5V for 5V oper

Download ISL267440IUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

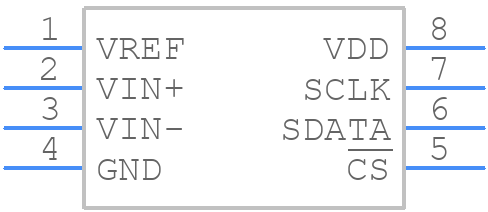

Symbol
ISL267440IUZ - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL267440IUZ - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - M8.118
click to zoom
3D Models
ISL267440IUZ - Renesas Electronics - 3D model - Small Outline Packages - M8.118
click to zoom

ISL267440IUZ Details

  • Manufacturer Part Number:

    ISL267440IUZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    MSOP

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    M8.118

  • HTS Code:

    8542.39.00.30

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Analog Input Voltage-Max:

    4 V

  • Analog Input Voltage-Min:

    -4 V

  • Conversion Time-Max:

    0.888 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.048828%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    TSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    1 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    0.01 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ISL267440IUZ Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout in the ISL26740IUZ evaluation board user manual, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The selection of the inductor depends on the specific application requirements, such as the input voltage, output voltage, and output current. Renesas provides a list of recommended inductors in the datasheet, and engineers can also use online inductor selection tools or consult with inductor manufacturers to find the best fit for their design.
  • The maximum junction temperature (Tj) for the ISL26740IUZ is 150°C, as specified in the datasheet. Engineers should ensure that the device operates within the recommended temperature range to prevent overheating and ensure reliable operation.
  • The ISL26740IUZ has built-in OCP and SCP features. Engineers can implement these features by connecting the OCP and SCP pins to the input voltage and output voltage rails, respectively, and setting the threshold values according to the datasheet specifications.
  • Renesas recommends using a low-ESR ceramic capacitor with a value of 10uF to 22uF for the input capacitor. The specific value depends on the input voltage and output current requirements of the application.
