Description:The ISL28025 is a bidirectional high-side and low-side digital current sense and voltage monitor with a serial interface. The device monitors power supply current and voltage, which provides the digital results along with calculated power. The ISL28025 provides tight accuracy of less than 0. 1% for both voltage and current monitoring. The VCC power can either be externally supplied or internally regulated, which allows the ISL28025 to handle a common-mode input voltage range from 0V to 60V. The wide range p
The recommended PCB layout for optimal performance involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals.
Calibration involves applying a known current to the device and adjusting the gain and offset registers to match the expected output. The datasheet provides a calibration procedure, and it's recommended to perform calibration at multiple points to ensure accuracy across the entire measurement range.
Temperature affects the device's accuracy, with a typical temperature coefficient of ±0.1% per °C. To compensate for temperature effects, you can use an external temperature sensor to monitor the device temperature and adjust the gain and offset registers accordingly. Alternatively, you can use the device's internal temperature sensor and calibration registers to perform temperature compensation.
The ISL28025FR12Z-T has an overcurrent detection feature that triggers an alert when the current exceeds a programmable threshold. To handle overcurrent conditions, you can use the device's alert pin to trigger an interrupt or shutdown the system. Additionally, the device has an internal overcurrent protection circuit that limits the current to prevent damage.
The recommended power-up sequence involves applying the power supply voltage (VCC) before the analog input voltage (VIN). This ensures that the device's internal biasing and reference circuits are properly initialized before the analog input is applied.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL28025FR12Z-T Overview

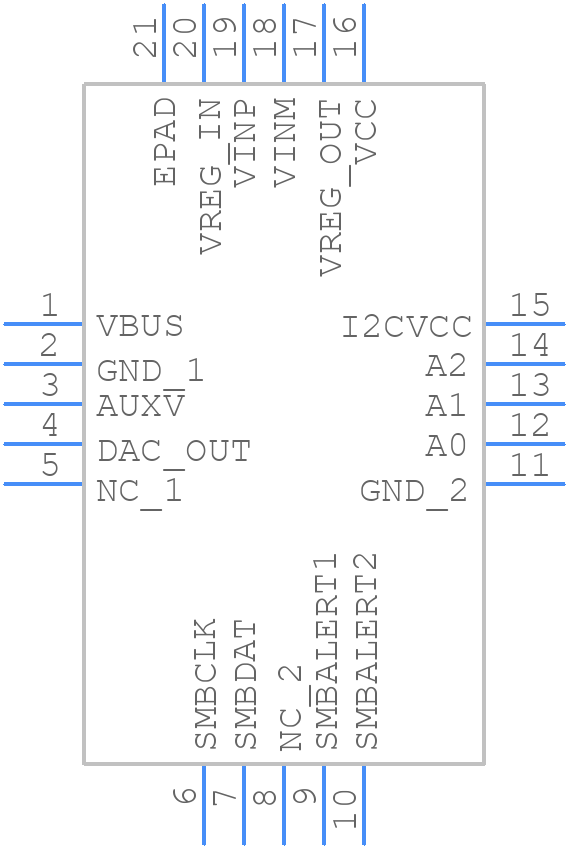

Use the download button to access the ISL28025FR12Z-T schematic symbol, PCB footprint, and 3D model.
