Description:The ISL28025 is a bidirectional high-side and low-side digital current sense and voltage monitor with a serial interface. The device monitors power supply current and voltage, which provides the digital results along with calculated power. The ISL28025 provides tight accuracy of less than 0. 1% for both voltage and current monitoring. The VCC power can either be externally supplied or internally regulated, which allows the ISL28025 to handle a common-mode input voltage range from 0V to 60V. The wide range p
A good PCB layout for the ISL28025FR12Z involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals to minimize noise and interference.
The ISL28025FR12Z requires calibration to ensure accurate current and voltage measurements. This can be done by applying a known current and voltage to the device and adjusting the calibration registers accordingly. The datasheet provides a detailed calibration procedure, and Renesas also offers a calibration tool to simplify the process.
The ISL28025FR12Z has an operating temperature range of -40°C to +125°C, making it suitable for use in a wide range of industrial and automotive applications.
The ISL28025FR12Z has a maximum voltage rating of 36V, making it suitable for use in low-voltage applications. However, it's not recommended for use in high-voltage applications above 36V. If you need to measure high voltages, consider using a voltage divider or an external voltage regulator to step down the voltage to within the device's rating.
The ISL28025FR12Z has an I2C interface, which can be easily interfaced with a microcontroller. The device requires a clock signal, data signal, and address pins to be connected to the microcontroller. The datasheet provides a detailed description of the interface protocol and timing diagrams to help with the implementation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL28025FR12Z Overview

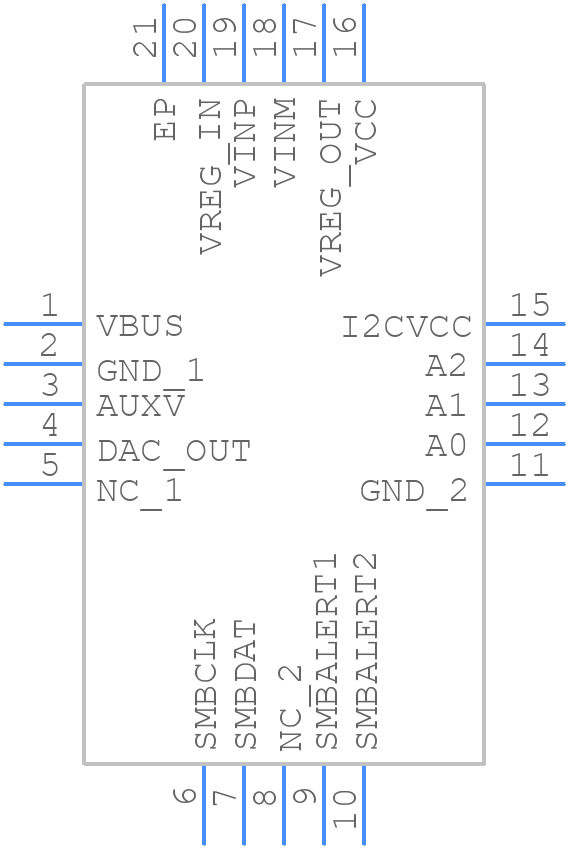

Use the download button to access the ISL28025FR12Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL28,
or try a keyword search, such as Power Management Circuits
