ISL28110FBZ-T7 - Renesas Electronics

Description: The ISL28110, ISL28210, are single and dual JFET amplifiers featuring low noise, high slew rate, low input bias current and offset voltage, making them the ideal choice for high impedance applications where precision and low noise are important. The combination of precision, low noise, and high speed combined with a small footprint provides the user with outstanding value and flexibility relative to similar competitive parts. Applications for these amplifiers include precision medical and analytical instrum

Download ISL28110FBZ-T7 Model

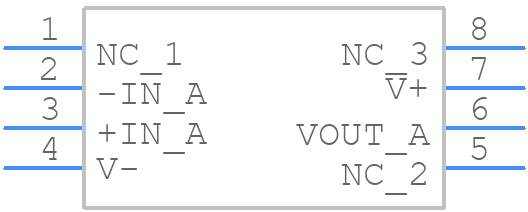

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ISL28110FBZ-T7 - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - M8. 15E
click to zoom
3D Models
ISL28110FBZ-T7 - Renesas Electronics  - 3D model - Small Outline Packages - M8. 15E
click to zoom

ISL28110FBZ-T7 Details

  • Manufacturer Part Number:

    ISL28110FBZ-T7

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOICN

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    M8.15E

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    5

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.000235 µA

  • Bias Current-Max (IIB) @25C:

    0.000002 µA

  • Common-mode Reject Ratio-Min:

    88 dB

  • Common-mode Reject Ratio-Nom:

    100 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.000001 µA

  • Input Offset Voltage-Max:

    1300 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    2

  • Neg Supply Voltage Limit-Max:

    -21 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUT LINE

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Nom:

    20 V/us

  • Supply Current-Max:

    3.8 mA

  • Supply Voltage Limit-Max:

    21 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    12500

  • Voltage Gain-Min:

    141253.75

  • Wideband:

    NO

  • Width:

    3.9 mm

ISL28110FBZ-T7 Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in the ISL28110 evaluation board user manual, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The selection of input and output capacitors depends on the specific application requirements, such as voltage rating, capacitance value, and ESR. Renesas recommends using low-ESR capacitors with a voltage rating of at least 2x the input voltage, and following the capacitor selection guidelines in the datasheet and application notes.
  • The ISL28110 is rated for operation from -40°C to +125°C, but the maximum ambient temperature range may be limited by the specific application and PCB design. It's recommended to follow the thermal management guidelines in the datasheet and application notes to ensure reliable operation.
  • The ISL28110 has a built-in overcurrent protection feature that can be enabled by connecting the OC pin to a resistor and capacitor network. The datasheet provides a detailed description of the overcurrent protection circuit and the recommended component values.
  • The recommended input voltage range for the ISL28110 is 2.7V to 5.5V, but the device can operate from 2.5V to 6V with reduced performance. It's recommended to follow the input voltage range guidelines in the datasheet to ensure reliable operation.
