Part Image

ISL28208FBZ-T13 - Renesas Electronics

Description: The ISL28108, ISL28208 and ISL28408 are single, dual and quad low power precision amplifiers optimized for single supply applications. These devices feature a common mode input voltage range extending to 0.5V below the V- rail, a rail-to-rail differential input voltage range for use as a comparator, and rail-to-rail output voltage swing, which make them ideal for single supply applications where input operation at ground is important. Added features include low offset voltage, and low temperature drift maki

Download ISL28208FBZ-T13 Model

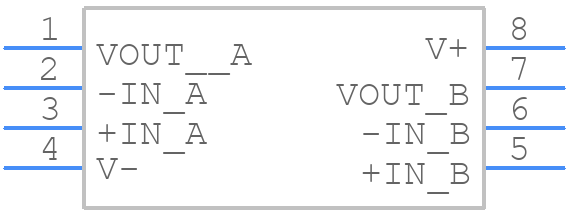

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ISL28208FBZ-T13 - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - M8.15E
click to zoom
3D Models
ISL28208FBZ-T13 - Renesas Electronics  - 3D model - Small Outline Packages - M8.15E
click to zoom

ISL28208FBZ-T13 Details

  • Manufacturer Part Number:

    ISL28208FBZ-T13

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOICN

  • Pin Count:

    8

  • Manufacturer Package Code:

    M8.15E

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    26 Weeks, 1 Day

  • Date Of Intro:

    2017-11-07

  • Manufacturer:

    Renesas Electronics Corporation

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    2

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    MATTE TIN

  • Time@Peak Reflow Temperature-Max (s):

    30

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ISL28208FBZ-T13 Overview

Use the download button to access the ISL28208FBZ-T13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL28, or try a keyword search, such as Operational Amplifiers

Parts related to ISL28208FBZ-T13

Showing 0 results

ISL28208FBZ-T13 Alternates

Showing results

Image Part Number Model
Part Image ISL28208FBZ-T7A Renesas Electronics Corporation

40V Precision Dual Supply Rail-Rail Output Low Power Operational Amplifiers, SOICN, /Reel

Part Image ISL28208FBZ Renesas Electronics Corporation

40V Precision Dual Supply Rail-Rail Output Low Power Operational Amplifiers, SOICN, /Tube
