ISL28213FUZ-T7 - Renesas Electronics

Description: The ISL28213 is a dual channel general purpose micropower, rail-to-rail input and output (RRIO) operational amplifier with a supply voltage range of 1.8V to 5.5V. Key features are a low supply current of 130µA maximum per channel at room temperature, a low bias current and a wide input voltage range, which enables the ISL28213 device to be an excellent general purpose operational amplifier for a wide range of applications. The ISL28213 is available in the MSOP8, SOIC8 and SOT23-8 packages. And, this device

Download ISL28213FUZ-T7 Model

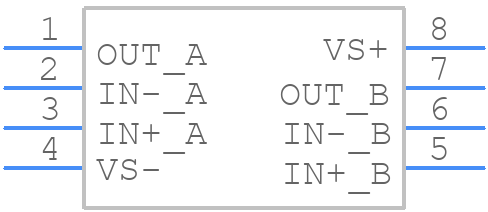

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ISL28213FUZ-T7 - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - M8.118A MSOP
click to zoom
3D Models
ISL28213FUZ-T7 - Renesas Electronics  - 3D model - Small Outline Packages - M8.118A MSOP
click to zoom

ISL28213FUZ-T7 Details

  • Manufacturer Part Number:

    ISL28213FUZ-T7

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    M8.118A

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    12 Weeks

  • Date Of Intro:

    2017-11-07

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    6

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.00005 µA

  • Bias Current-Max (IIB) @25C:

    0.00002 µA

  • Common-mode Reject Ratio-Nom:

    70 dB

  • Frequency Compensation:

    NO

  • Input Offset Current-Max (IIO):

    0.00003 µA

  • Input Offset Voltage-Max:

    5000 µV

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Nom:

    1 V/us

  • Supply Current-Max:

    0.34 mA

  • Supply Voltage Limit-Max:

    6.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    2000

  • Wideband:

    NO

  • Width:

    3 mm

ISL28213FUZ-T7 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog and digital power plane is recommended. Keep the analog and digital components separate and use a star-grounding configuration to minimize noise.
  • Ensure the amplifier is operated within the recommended gain-bandwidth product, and use a compensation capacitor (Cc) between pins 3 and 5 to stabilize the amplifier. Also, use a low-ESR capacitor for decoupling.
  • The ISL28213FUZ-T7 can drive up to 1nF of capacitive load. Exceeding this limit may cause instability or oscillation.
  • Use a voltage clamp or a TVS diode to protect the amplifier from overvoltage. For ESD protection, use a series resistor and a capacitor to slow down the ESD pulse, and consider adding an ESD protection device.
  • Power up the amplifier in the following sequence: VCC, VREF, and then VIN. Power down in the reverse sequence. This ensures proper operation and prevents latch-up.
