Description:The ISL28130, ISL28230 and ISL28430 are single, dual and quad micropower, low offset drift operational amplifiers that are optimized for single and dual supply operation from 1. 8V to 5. 5V and ±0. 9V to ±2. 75V. Their low supply current of 20µA and rail-to-rail input/output enable the ISL28130, ISL28230, and ISL28430 to be an excellent general-purpose op amp for a range of applications. The ISL28130, ISL28230 and ISL28430 are ideal for handheld devices that operate off 2AA or single Li-ion batteries. The I
Renesas provides a recommended PCB layout guide in their application note AN1995, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The selection of input and output capacitors depends on the specific application and frequency range. Renesas recommends using low-ESR capacitors with a value of 10uF to 22uF for input and output decoupling. The datasheet provides more information on capacitor selection and layout considerations.
The maximum power dissipation of the ISL28230CUZ-T7A is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature, and the thermal resistance is 125°C/W. Engineers should ensure that the device is operated within the recommended power dissipation limits to prevent overheating.
To ensure EMC, engineers should follow good PCB design practices, such as using a solid ground plane, minimizing loop areas, and using shielding where necessary. Additionally, Renesas recommends using a common-mode choke or a ferrite bead in series with the input signal to reduce electromagnetic interference (EMI).
The recommended operating voltage range for the ISL28230CUZ-T7A is 2.7V to 5.5V. Operating the device outside of this range may affect its performance, stability, and reliability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL28230CUZ-T7A Overview

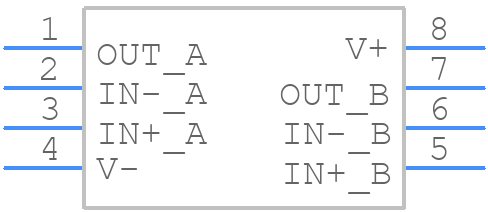

Use the download button to access the ISL28230CUZ-T7A schematic symbol, PCB footprint, and 3D model.
