Description:The ISL28130, ISL28230 and ISL28430 are single, dual and quad micropower, low offset drift operational amplifiers that are optimized for single and dual supply operation from 1. 8V to 5. 5V and ±0. 9V to ±2. 75V. Their low supply current of 20µA and rail-to-rail input/output enable the ISL28130, ISL28230, and ISL28430 to be an excellent general-purpose op amp for a range of applications. The ISL28130, ISL28230 and ISL28430 are ideal for handheld devices that operate off 2AA or single Li-ion batteries. The I
Renesas provides a recommended PCB layout guide in the ISL28230FRZ evaluation board user manual, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The selection of input and output capacitors depends on the specific application requirements, such as input voltage, output voltage, and ripple current. Renesas recommends using X5R or X7R ceramic capacitors with a voltage rating of at least 1.5 times the maximum input voltage, and a capacitance value of 10uF to 22uF for the input capacitor and 10uF to 47uF for the output capacitor.
The ISL28230FRZ is rated for operation from -40°C to +125°C, but the maximum ambient temperature range for reliable operation depends on the specific application and the thermal management of the system. Renesas recommends keeping the junction temperature below 125°C to ensure reliable operation and long-term reliability.
The ISL28230FRZ has a built-in overcurrent protection feature that can be enabled by connecting the OC pin to a resistor and capacitor network. For short-circuit protection, Renesas recommends using an external current sense resistor and a comparator to detect overcurrent conditions and shut down the device if necessary.
Renesas recommends a soft-start sequence to prevent inrush current and ensure reliable startup. The recommended sequence is to first apply the input voltage, then enable the device by pulling the EN pin high, and finally apply the output load.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL28230FRZ Overview

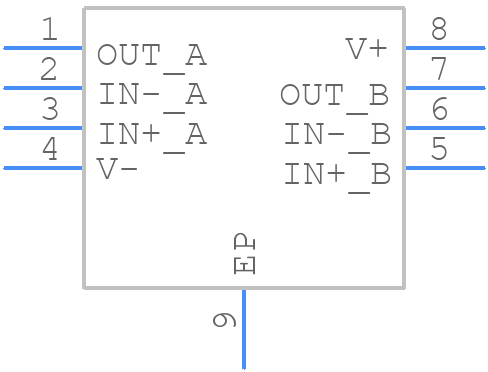

Use the download button to access the ISL28230FRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL28,
or try a keyword search, such as Operational Amplifiers
