Description:Support is limited to customers who have already adopted these products.The ISL28271 and ISL28272 are dual micropower instrumentation amplifiers (in-amps) optimized for single supply operation over the +2. 4V to +5. 5V range. Both devices feature an Input Range Enhancement Circuit (IREC) which maintains CMRR performance for input voltages equal to the positive and negative supply rails. The input signal is capable of swinging 10% above the positive supply rail and to 100mV below the negative supply with onl
Renesas provides a recommended PCB layout in the application note AN1995, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The selection of input and output capacitors depends on the specific application and frequency range. Renesas recommends using low-ESR capacitors with a value of 10uF to 22uF for input and output decoupling. The application note AN1995 provides more detailed guidance on capacitor selection.
The maximum power dissipation of the ISL28271FAZ-T7 is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, it's recommended to consult the thermal derating curve in the datasheet to determine the maximum power dissipation at a specific temperature.
The ISL28271FAZ-T7 is rated for operation up to 125°C, but the performance and reliability may degrade at high temperatures. Renesas recommends consulting the datasheet and application notes for guidance on using the op-amp in high-temperature environments.
To ensure EMC, Renesas recommends following proper PCB design and layout practices, such as using a solid ground plane, minimizing loop areas, and using shielding and filtering components as necessary. Additionally, the application note AN1995 provides guidance on EMC considerations for the ISL28271FAZ-T7.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL28271FAZ-T7 Overview

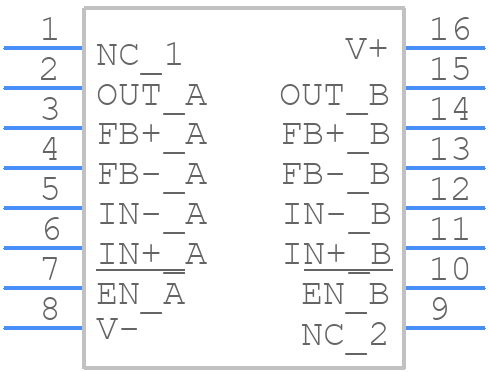

Use the download button to access the ISL28271FAZ-T7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL28,
or try a keyword search, such as Instrumentation Amplifiers
