ISL28290FRUZ-T7 - Renesas Electronics

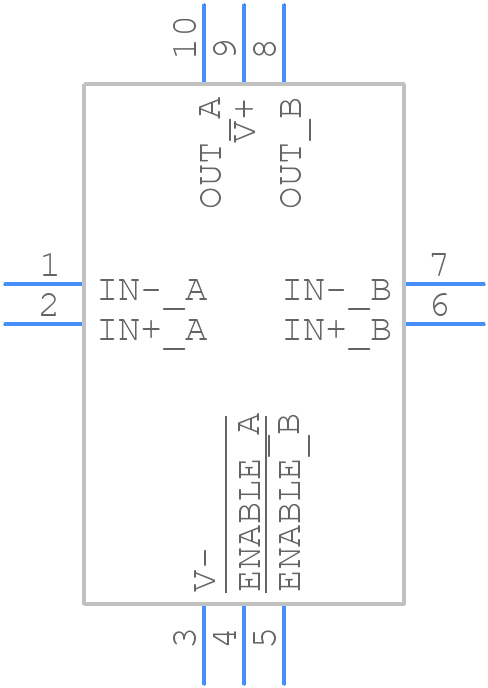

ISL28290FRUZ-T7 Details

• Manufacturer Part Number:

  ISL28290FRUZ-T7

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  uTQFN

• Package Description:

  uTQFN-10

• Pin Count:

  10

• Manufacturer Package Code:

  L10.1.8X1.4A

• ECCN Code:

  EAR99

• HTS Code:

  8542.33.00.01

• Factory Lead Time:

  4 Weeks

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Amplifier Type:

  OPERATIONAL AMPLIFIER

• Architecture:

  VOLTAGE-FEEDBACK

• Average Bias Current-Max (IIB):

  18 µA

• Bias Current-Max (IIB) @25C:

  16 µA

• Common-mode Reject Ratio-Min:

  78 dB

• Common-mode Reject Ratio-Nom:

  103 dB

• Frequency Compensation:

  NO

• Input Offset Voltage-Max:

  900 µV

• JESD-30 Code:

  R-PQCC-N10

• JESD-609 Code:

  e4

• Length:

  1.8 mm

• Low-Bias:

  NO

• Low-Offset:

  YES

• Micropower:

  NO

• Moisture Sensitivity Level:

  3

• Neg Supply Voltage Limit-Max:

  -18 V

• Neg Supply Voltage-Nom (Vsup):

  -15 V

• Number of Functions:

  2

• Number of Terminals:

  10

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  VQCCN

• Package Shape:

  RECTANGULAR

• Package Style:

  CHIP CARRIER, VERY THIN PROFILE

• Packing Method:

  TR

• Peak Reflow Temperature (Cel):

  260

• Power:

  NO

• Programmable Power:

  NO

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  0.55 mm

• Slew Rate-Min:

  25 V/us

• Slew Rate-Nom:

  3 V/us

• Supply Current-Max:

  26 mA

• Supply Voltage Limit-Max:

  5.5 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Technology:

  BIPOLAR

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.4 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Unity Gain BW-Nom:

  170000

• Voltage Gain-Min:

  31622

• Wideband:

  NO

• Width:

  1.4 mm
