ISL28291FUZ-T7 - Renesas Electronics

Description: The  ISL28291 is a tiny, dual, ultra-low noise, ultra-low distortion operational amplifier. It is fully specified to operate down to +3V single supply. This amplifier has outputs that swing rail-to-rail and an input common mode voltage that extends to ground (ground sensing). The device is unity gain stable with an input referred voltage noise of 1.7nV/√Hz. Both parts feature 0.00018% THD+N at 1kHz. The ISL28291 is available in the 8 Ld SOIC, 10 Ld 1.8mm x 1.4mm UTQFN and 10 Ld MSOP packages. All devices ar

Download ISL28291FUZ-T7 Model

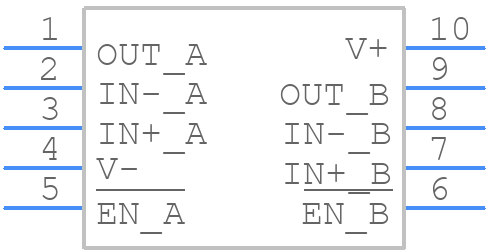

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ISL28291FUZ-T7 - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - M10.118A
click to zoom
3D Models
ISL28291FUZ-T7 - Renesas Electronics  - 3D model - Small Outline Packages - M10.118A
click to zoom

ISL28291FUZ-T7 Details

  • Manufacturer Part Number:

    ISL28291FUZ-T7

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Package Description:

    ROHS COMPLIANT, MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    M10.118A

  • Country Of Origin:

    Malaysia, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    6

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    7 µA

  • Bandwidth (3dB)-Nom:

    61 MHz

  • Bias Current-Max (IIB) @25C:

    6 µA

  • Common-mode Reject Ratio-Min:

    78 dB

  • Common-mode Reject Ratio-Nom:

    100 dB

  • Frequency Compensation:

    NO

  • Input Offset Current-Max (IIO):

    0.9 µA

  • Input Offset Voltage-Max:

    840 µV

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    2

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TAPE AND REEL

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    YES

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Min:

    12 V/us

  • Slew Rate-Nom:

    17 V/us

  • Supply Current-Max:

    7 mA

  • Supply Voltage Limit-Max:

    5.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Gain-Min:

    79432.82

  • Wideband:

    YES

  • Width:

    3 mm

ISL28291FUZ-T7 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog and digital power plane is recommended. Keep the analog and digital components separate and use a star-grounding configuration to minimize noise.
  • Ensure the amplifier is operated within the recommended gain-bandwidth product, and use a compensation capacitor (Cc) between pins 3 and 5 to stabilize the amplifier. Also, use a low-ESR capacitor for the power supply decoupling.
  • The ISL28291FUZ-T7 can drive up to 1nF of capacitive load. Exceeding this limit may cause instability or oscillation.
  • Use ESD protection diodes (e.g., 1N4148) between the input pins and the power supply rails. Also, add a voltage clamp (e.g., a zener diode) between the input pins and the power supply rails to protect against overvoltage.
  • Power up the amplifier by applying the analog power supply (VCC) first, followed by the digital power supply (VDD). When powering down, reverse the sequence.
