ISL28533FVZ - Renesas Electronics

Description: The ISL28533 5V zero-drift rail-to-rail input/output (RRIO) Programmable Gain Instrumentation Amplifiers (PGIA). This instrumentation amplifier features low offset, low noise, low gain error, and high CMRR. It is ideal for high precision applications over the wide industrial temperature range. This in-amp is designed with a unique 2-bit, 3-state logic interface that allows up to 9 selectable gain settings. The ISL2853x single-ended output amplifier includes an additional uncommitted zero-drift amplifier, us

Download ISL28533FVZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

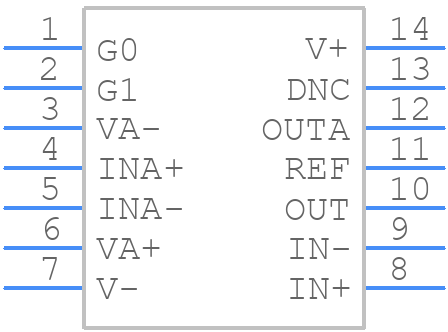

ISL28533FVZ - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL28533FVZ - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - M14.173-
click to zoom
3D Models
ISL28533FVZ - Renesas Electronics - 3D model - Small Outline Packages - M14.173-
click to zoom

ISL28533FVZ Details

  • Manufacturer Part Number:

    ISL28533FVZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    M14.173

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.001 µA

  • Bandwidth (3dB)-Nom:

    2.3 MHz

  • Common-mode Reject Ratio-Min:

    97 dB

  • Input Offset Current-Max (IIO):

    0.001 µA

  • Input Offset Voltage-Max:

    10 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Slew Rate-Nom:

    0.8 V/us

  • Supply Current-Max:

    3.5 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

ISL28533FVZ Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in the ISL28533FVZ evaluation board user manual, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The ISL28533FVZ has a thermal pad on the bottom of the package, which should be connected to a thermal plane on the PCB to dissipate heat. Additionally, Renesas recommends using thermal vias and a heat sink to further improve thermal management.
  • Renesas recommends using a 10uF to 22uF X5R or X7R ceramic capacitor with a voltage rating of 10V or higher as the input capacitor. The capacitor should be placed as close as possible to the VIN pin to minimize noise and ensure stable operation.
  • The ISL28533FVZ has a resistive divider network that sets the output voltage. Renesas provides a formula in the datasheet to calculate the required resistor values for a specific output voltage. Additionally, the device has a feedback pin that can be connected to a resistive divider network to adjust the output voltage.
  • The ISL28533FVZ has a maximum output current capability of 3A, but this can be limited by the thermal performance of the device and the PCB. Renesas recommends derating the output current based on the ambient temperature and the thermal performance of the system.
