Description:The ISL28633 is a 5V zero-drift rail-to-rail input/output (RRIO) Programmable Gain Instrumentation Amplifier (PGIA). This instrumentation amplifier features low offset, low noise, low gain error, and high CMRR. It is ideal for high precision applications over the wide industrial temperature range. This in-amp is designed with a unique 2-bit, 3-state logic interface that allows up to 9 selectable gain settings. The ISL2863x differential output amplifier includes a reference pin to set the common-mode output
A good PCB layout for the ISL28633FVZ-T13 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog layer to minimize noise and interference.
To ensure proper powering and decoupling of the ISL28633FVZ-T13, use a high-quality, low-ESR capacitor (e.g., 10uF ceramic) as close as possible to the device's power pins. Additionally, use a separate analog power supply or a well-regulated power supply with minimal noise and ripple.
For optimal performance, it's recommended to use a low-pass filter (e.g., RC filter) at the input and output of the ISL28633FVZ-T13 to minimize noise and aliasing. The filter's cutoff frequency should be set to at least 10 times the input signal's bandwidth.
Calibration of the ISL28633FVZ-T13 involves adjusting the internal offset and gain to minimize errors. This can be done using the device's built-in calibration registers or through external calibration using a precision voltage source and a multimeter.
To ensure reliable operation and minimize thermal-related errors, it's recommended to keep the ISL28633FVZ-T13's junction temperature below 125°C. This can be achieved by using a heat sink, thermal interface material, and ensuring good airflow around the device.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL28633FVZ-T13 Overview

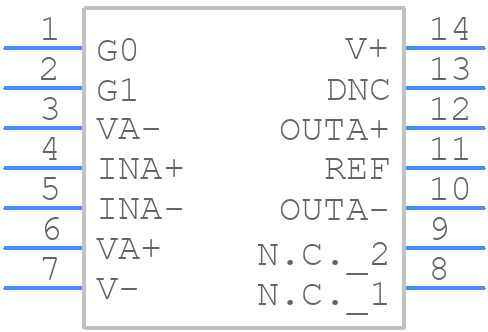

Use the download button to access the ISL28633FVZ-T13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL28,
or try a keyword search, such as Instrumentation Amplifiers
