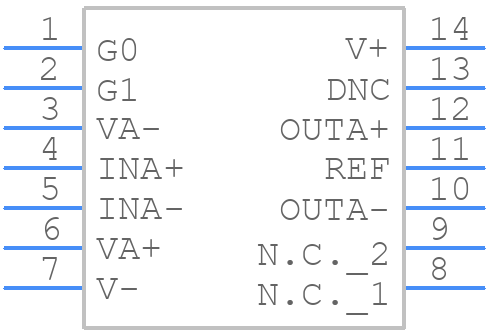

ISL28635FVZ-T13 - Renesas Electronics

ISL28635FVZ-T13 Details

• Manufacturer Part Number:

  ISL28635FVZ-T13

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  TSSOP

• Package Description:

  TSSOP-14

• Pin Count:

  14

• Manufacturer Package Code:

  M14.173

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.33.00.01

• Factory Lead Time:

  12 Weeks

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  7

• Amplifier Type:

  INSTRUMENTATION AMPLIFIER

• Average Bias Current-Max (IIB):

  0.001 µA

• Bandwidth (3dB)-Nom:

  2.3 MHz

• Common-mode Reject Ratio-Min:

  97 dB

• Input Offset Current-Max (IIO):

  0.001 µA

• Input Offset Voltage-Max:

  10 µV

• JESD-30 Code:

  R-PDSO-G14

• JESD-609 Code:

  e3

• Length:

  5 mm

• Moisture Sensitivity Level:

  2

• Number of Functions:

  1

• Number of Terminals:

  14

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Equivalence Code:

  TSSOP14,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Packing Method:

  TR

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  1.2 mm

• Slew Rate-Nom:

  0.8 V/us

• Supply Current-Max:

  3.6 mA

• Supply Voltage Limit-Max:

  6 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  4.4 mm
