Description:The ISL28635 is a 5V zero-drift rail-to-rail input/output (RRIO) Programmable Gain Instrumentation Amplifiers (PGIA). This instrumentation amplifier features low offset, low noise, low gain error, and high CMRR. It is ideal for high precision applications over the wide industrial temperature range. This in-amp is designed with a unique 2-bit, 3-state logic interface that allows up to 9 selectable gain settings. The ISL2863x differential output amplifier includes a reference pin to set the common-mode output
The recommended PCB layout for optimal performance can be found in the ISL28635FVZ-T7A evaluation board user manual or by contacting Renesas' technical support. Generally, it's recommended to follow good analog design practices, such as separating analog and digital grounds, using a solid ground plane, and minimizing noise coupling.
The ISL28635FVZ-T7A ADC does not require calibration. It has an internal calibration circuit that ensures accurate conversions. However, if you need to perform a system-level calibration, you can use the ADC's built-in calibration registers to adjust the gain and offset. Refer to the datasheet for more information on calibration registers.
The maximum cable length for the analog input signals depends on the signal frequency, amplitude, and noise environment. As a general rule, keep the cable length as short as possible (less than 10 inches) to minimize noise pickup and signal degradation. If longer cables are necessary, use shielded cables and follow good analog signal routing practices.
The ISL28635FVZ-T7A is specified to operate from -40°C to 125°C. However, the device's performance and accuracy may degrade at higher temperatures. If you need to operate the device in a high-temperature environment, ensure that you follow proper thermal management practices, such as using a heat sink or thermal interface material, and consult with Renesas' technical support for guidance on temperature derating.
The ISL28635FVZ-T7A has internal ESD protection diodes on the analog input pins. However, it's still recommended to follow good ESD handling practices, such as using an ESD wrist strap or mat, and ensuring that the PCB design includes ESD protection components, such as TVS diodes or ESD arrays, to protect the device from external ESD events.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL28635FVZ-T7A Overview

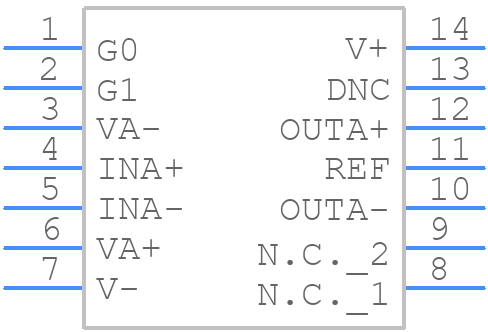

Use the download button to access the ISL28635FVZ-T7A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL28,
or try a keyword search, such as Instrumentation Amplifiers
