The recommended PCB layout for optimal performance involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals, a dedicated layer for the digital signals, and two layers for the power and ground planes.
To ensure reliable operation over the entire operating temperature range, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and keeping the device away from heat sources. Additionally, it's recommended to follow the recommended operating conditions and derating guidelines provided in the datasheet.
Using a lower or higher supply voltage than the recommended 3.3V may affect the device's performance, power consumption, and reliability. Operating at a lower voltage may reduce the device's speed and increase its power consumption, while operating at a higher voltage may increase the device's speed but also increase its power consumption and reduce its reliability. It's recommended to follow the recommended operating conditions provided in the datasheet.
To troubleshoot issues with the device's I2C interface, it's recommended to check the I2C bus voltage levels, clock frequency, and signal integrity. Ensure that the I2C bus is properly terminated, and that there are no bus conflicts or signal reflections. Additionally, use an oscilloscope or logic analyzer to monitor the I2C bus signals and verify that they meet the I2C specification.
The ISL3150EIBZ has built-in ESD protection diodes on all pins, which can withstand up to 2kV of ESD voltage. Additionally, the device has latch-up prevention circuitry to prevent latch-up conditions. However, it's still recommended to follow proper ESD handling and prevention practices during device handling and PCB assembly.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL3150EIBZ Overview

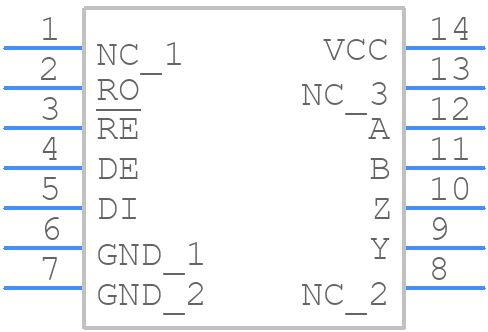

Use the download button to access the ISL3150EIBZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL31,
or try a keyword search, such as Line Driver or Receivers
