Description:The ISL315xE family of 5V powered RS-485/RS-422 transceivers features high output drive and high ESD protection. The devices withstand ±16. 5kV IEC61000-4- 2 ESD strikes without latch-up. The large output voltage of 3. 1V typical into a 54Ω load provides high noise immunity, and enables the drive of up to 8000ft long bus segments, or eight 120Ω terminations in a star topology. These devices possess less than 125μA bus input currents, thus constituting a true 1/8 unit load. The high output drive combined wit
Renesas provides a recommended PCB layout in the application note AN1965, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
To ensure reliable operation in high-temperature environments, it is essential to follow the recommended thermal management guidelines in the datasheet, including providing adequate heat sinking, using thermal interface materials, and keeping the device within its specified operating temperature range.
While the ISL3155EIBZ-T7A can operate with a voltage supply range of 2.7V to 5.5V, using a different voltage supply than the recommended 3.3V may affect the device's performance, power consumption, and reliability. It is essential to consult the datasheet and application notes to understand the implications of using a different voltage supply and to ensure that the device operates within its specified parameters.
To troubleshoot issues with the ISL3155EIBZ-T7A, it is recommended to follow a systematic approach, including reviewing the device's configuration and setup, checking the power supply and signal integrity, and using debugging tools such as logic analyzers or oscilloscopes to identify the root cause of the issue. Renesas also provides technical support and resources, including application notes and FAQs, to help troubleshoot and resolve issues.
The ISL3155EIBZ-T7A is designed to operate in environments with high levels of electromagnetic interference (EMI), but it is still essential to follow good design practices to minimize the impact of EMI on the device's performance and reliability. This includes using shielding, filtering, and grounding techniques, as well as following the recommended PCB layout and routing guidelines.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL3155EIBZ-T7A Overview

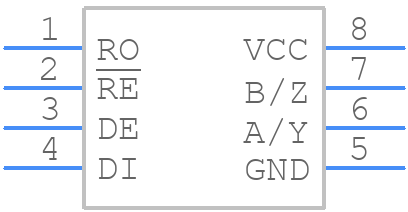

Use the download button to access the ISL3155EIBZ-T7A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL31,
or try a keyword search, such as Line Driver or Receivers
