Description:High VOD: 3.1V (Typ) into RD = 54Ω
• Low bus currents: 125µA constitutes a true 1/8 unit
load
• Allows for up to 512 transceivers on the bus
• ±16.5kV ESD protection on bus I/O pins
• High transient overvoltage tolerance of ±100V
• Full fail-safe outputs for open or shorted inputs
• Hot plug capability - driver and receiver outputs
remain high-impedance during power-up and
power-down
• Supported data rates: 115kbps, 1Mbps, 20Mbps
• Low supply current (driver disabled): 550µA
• Ultra-low shutdown
A good PCB layout for the ISL3156EIBZ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals to minimize noise and interference.
To ensure reliable operation over the entire operating temperature range, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and avoiding thermal hotspots. Additionally, ensure that the device is operated within its specified voltage and current limits.
Operating the ISL3156EIBZ at a lower supply voltage than the recommended 3.3V may result in reduced performance, increased power consumption, and potential reliability issues. Operating at a higher supply voltage may result in increased power consumption, heat generation, and potentially reduced reliability. It's recommended to operate the device within the specified voltage range for optimal performance and reliability.
To troubleshoot issues with the I2C interface, start by verifying the I2C bus voltage levels, clock frequency, and signal integrity. Check for proper termination, pull-up resistors, and bus loading. Use an oscilloscope or logic analyzer to monitor the I2C bus signals and identify any errors or anomalies. Consult the datasheet and application notes for specific guidance on I2C interface troubleshooting.
The ISL3156EIBZ has built-in ESD protection diodes on all pins, which provide protection against electrostatic discharge events. To prevent latch-up, it's essential to follow proper PCB design and layout practices, such as using a solid ground plane, minimizing signal routing, and avoiding voltage overshoots. Additionally, ensure that the device is operated within its specified voltage and current limits.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL3156EIBZ Overview

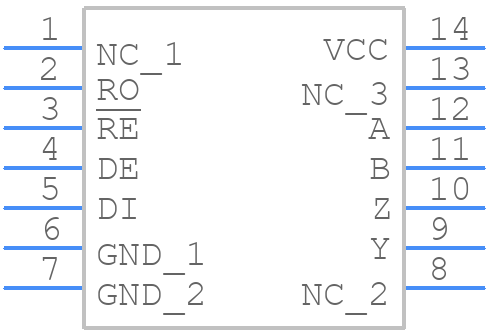

Use the download button to access the ISL3156EIBZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL31,
or try a keyword search, such as Line Driver or Receivers
