Description:The ISL3159E is a ±15kV IEC61000 ESD protected, 5V powered, single transceiver that meets both the RS-485 and RS-422 standards for balanced communication. It also features the larger output voltage and higher data rate (up to 40Mbps) required by high speed PROFIBUS applications, and is offered in industrial and extended Industrial (-40°C to +125°C) temperature ranges. The low bus currents (+220µA/-150µA) present a “1/5 unit load” to the RS-485 bus. This allows up to 160 transceivers on the network without v
Renesas provides a recommended PCB layout in the ISL3159EFRZ evaluation board user manual, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize EMI.
To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and ensuring good airflow. Additionally, the device's thermal shutdown feature can be enabled to prevent damage from overheating.
Operating the ISL3159EFRZ at a lower supply voltage than the recommended 3.3V may result in reduced performance, increased power consumption, and potential reliability issues. Operating at a higher supply voltage may cause excessive power consumption, increased heat generation, and potentially damage the device. It's recommended to operate the device within the specified supply voltage range for optimal performance and reliability.
To troubleshoot issues with the I2C interface, check the I2C bus voltage levels, clock frequency, and signal integrity. Ensure that the I2C bus is properly terminated, and that there are no bus conflicts or signal reflections. Use an oscilloscope or logic analyzer to monitor the I2C bus signals and identify any errors or anomalies.
The ISL3159EFRZ has built-in ESD protection diodes on all pins, which provide protection against electrostatic discharge up to ±2kV. Additionally, the device is designed with latch-up prevention measures, such as substrate ties and guard rings, to prevent latch-up and ensure reliable operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL3159EFRZ Overview

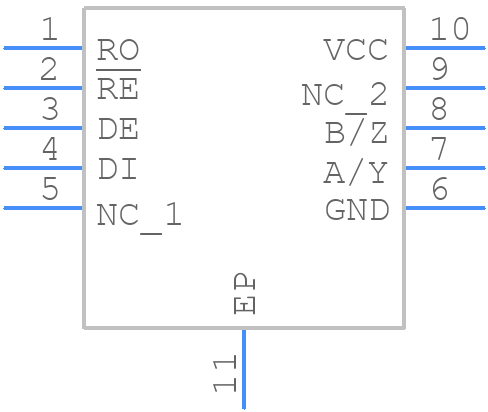

Use the download button to access the ISL3159EFRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL31,
or try a keyword search, such as Line Driver or Receivers
