Description:The Renesas ISL317xE are ±15kV IEC61000 ESD protected, 3. 3V powered single transceivers that meet both the RS-485 and RS-422 standards for balanced communication. These devices have very low bus currents (+125µA/-100µA), so they present a true “1/8 unit load” to the RS-485 bus. This allows up to 256 transceivers on the network without violating the RS-485 specification's 32 unit load maximum, and without using repeaters. For example, in a remote utility meter reading system, individual meter readings are r
A good PCB layout for the ISL3170EIBZ-T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a low-ESR capacitor for the VCC pin and to minimize the length of the traces connected to the RX and TX pins.
To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal management practices. This includes providing adequate heat sinking, using a thermally conductive PCB material, and keeping the device away from heat sources. Additionally, the device should be operated within its specified temperature range (-40°C to +125°C).
Operating the ISL3170EIBZ-T at a lower supply voltage than the recommended 3.3V may result in reduced performance, increased power consumption, and potential reliability issues. Operating at a higher supply voltage may cause the device to exceed its maximum ratings, leading to damage or failure. It's recommended to operate the device within the specified supply voltage range (2.7V to 3.6V) for optimal performance and reliability.
To troubleshoot issues with the UART interface, start by verifying the baud rate, data bits, and stop bits are correctly configured. Check the TX and RX pin connections and ensure they are not swapped. Use a logic analyzer or oscilloscope to verify the signal integrity and timing. Also, check the device's FIFO buffers for overflow or underflow conditions.
The ISL3170EIBZ-T has built-in ESD protection diodes on all pins, which can withstand up to ±8kV of ESD voltage. To prevent latch-up, it's essential to follow proper PCB design and layout practices, such as using a solid ground plane, minimizing trace lengths, and avoiding parallel signal traces. Additionally, the device should be handled and stored in an ESD-safe environment.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL3170EIBZ-T Overview

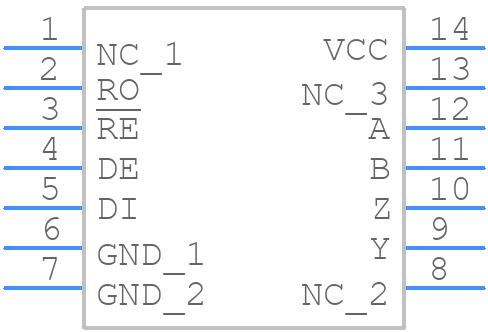

Use the download button to access the ISL3170EIBZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL31,
or try a keyword search, such as Line Driver or Receivers
