ISL3173EIUZ-T - Renesas Electronics

Description: The Renesas ISL317xE are ±15kV IEC61000 ESD protected, 3. 3V powered single transceivers that meet both the RS-485 and RS-422 standards for balanced communication. These devices have very low bus currents (+125µA/-100µA), so they present a true “1/8 unit load” to the RS-485 bus. This allows up to 256 transceivers on the network without violating the RS-485 specification's 32 unit load maximum, and without using repeaters. For example, in a remote utility meter reading system, individual meter readings are r

Download ISL3173EIUZ-T Model

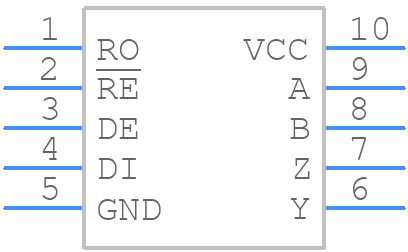

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ISL3173EIUZ-T - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - M10.118
click to zoom
3D Models
ISL3173EIUZ-T - Renesas Electronics  - 3D model - Small Outline Packages - M10.118
click to zoom

ISL3173EIUZ-T Details

  • Manufacturer Part Number:

    ISL3173EIUZ-T

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    MSOP

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    M10.118

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    7

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • High Level Input Current-Max:

    0.000002 A

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-422; EIA-485

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    1.5 V

  • Output Characteristics:

    3-STATE

  • Output Low Current-Max:

    0.004 A

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Receive Delay-Max:

    120 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    0.8 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    3.6 V

  • Supply Voltage1-Min:

    3 V

  • Supply Voltage1-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    800 ns

  • Width:

    3 mm

ISL3173EIUZ-T Frequently Asked Questions (FAQs)

  • A good PCB layout for the ISL3173EIUZ-T involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure proper power-up and initialization, apply power to the device in the following sequence: VCC, then VDD, and finally VEE. The device should be powered up in a monotonic sequence, with VCC reaching its final value before VDD and VEE. The device is fully operational after the power-up sequence is complete.
  • The ISL3173EIUZ-T has a maximum junction temperature of 150°C. To ensure reliable operation, the device should be operated at a junction temperature below 125°C. A thermal pad is available on the package to help dissipate heat. A heat sink or thermal interface material can be used to further reduce the junction temperature.
  • To troubleshoot issues with the ISL3173EIUZ-T, start by verifying the power supply voltages and ensuring that the device is properly powered up. Check the input and output signals for proper voltage levels and signal integrity. Use an oscilloscope to verify the signal waveforms and check for any signs of oscillation or instability.
  • The ISL3173EIUZ-T has built-in ESD protection, but it is still important to follow proper ESD handling procedures when handling the device. Use an ESD wrist strap or mat, and ensure that the device is stored in an ESD-safe environment. Avoid touching the device pins or handling the device in a way that could generate static electricity.
