Description:The ISL3179E and ISL3180E are high ESD protected, 3. 3V powered, single transceivers that meet both the RS-485 and RS-422 standards for balanced communication. Each device has low bus currents (+220μA/-150μA), so they present a “1/5 unit load” to the RS-485 bus. This allows up to 160 transceivers on the network without violating the RS-485 specification’s 32 unit load maximum, and without using repeaters. Receiver (Rx) inputs feature a “full fail-safe” design, which ensures a logic high Rx output if Rx inpu
A good PCB layout for the ISL3179EFRZ-T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a low-ESR capacitor for the VCC pin and to minimize the length of the traces connected to the RX and TX pins.
To ensure reliable operation over the entire operating temperature range, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and avoiding thermal gradients. Additionally, the device should be operated within its specified voltage and current limits.
Operating the ISL3179EFRZ-T at a lower supply voltage than the recommended 3.3V may result in reduced performance, increased power consumption, and potential reliability issues. Operating at a higher supply voltage may result in increased power consumption, heat generation, and potential damage to the device. It's recommended to operate the device within the specified voltage range for optimal performance and reliability.
To troubleshoot issues with the ISL3179EFRZ-T, start by verifying the power supply and clock signals, then check the transmission and reception lines for proper termination and signal integrity. Use an oscilloscope to monitor the signals and identify any anomalies. Consult the datasheet and application notes for specific troubleshooting guidelines and procedures.
The ISL3179EFRZ-T has built-in ESD protection diodes on all pins, which can withstand up to 2kV of ESD voltage. To prevent latch-up, it's essential to follow proper PCB design and layout practices, such as using a solid ground plane, minimizing trace lengths, and avoiding parallel signal paths. Additionally, the device should be handled and stored in an ESD-safe environment.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL3179EFRZ-T Overview

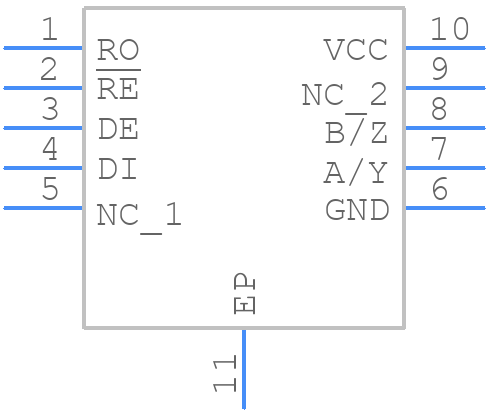

Use the download button to access the ISL3179EFRZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL31,
or try a keyword search, such as Line Driver or Receivers
