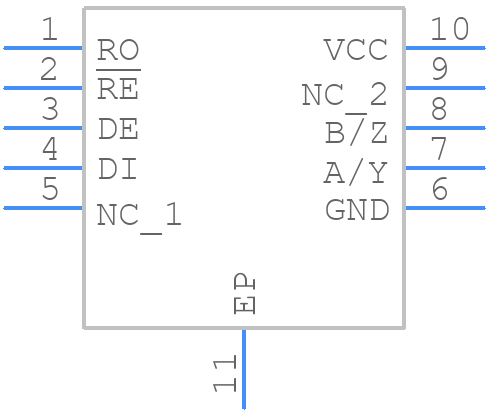

ISL3179EIRZ - Renesas Electronics

ISL3179EIRZ Details

• Manufacturer Part Number:

  ISL3179EIRZ

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  DFN

• Pin Count:

  10

• Manufacturer Package Code:

  L10.3X3C

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  12 Weeks

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  7.2

• Differential Output:

  YES

• Driver Number of Bits:

  1

• Input Characteristics:

  DIFFERENTIAL SCHMITT TRIGGER

• Interface IC Type:

  LINE TRANSCEIVER

• Interface Standard:

  EIA-422; EIA-485

• JESD-30 Code:

  S-PDSO-N10

• JESD-609 Code:

  e3

• Length:

  3 mm

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Terminals:

  10

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVSON

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Receive Delay-Max:

  16.5 ns

• Receiver Number of Bits:

  1

• Seated Height-Max:

  0.9 mm

• Supply Voltage-Max:

  3.6 V

• Supply Voltage-Min:

  3 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  BICMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Transmit Delay-Max:

  16 ns

• Width:

  3 mm
