Description:The ISL32172E, ISL32272E, ISL32174E, and ISL32179E are ±16. 5kV IEC61000-4-2 ESD protected, 3. 0V to 5. 5V powered, QUAD transmitters for balanced communication using the RS-422 standard. These drivers have very low output leakage currents (±10µA), so they present a low load to the RS-422 bus. The driver (Tx) outputs are tri-statable and incorporate a hot plug feature to keep them disabled during power-up and power-down. The ISL32172E and ISL32272E have a common EN/EN, the ISL32174E has a two channel EN12/E
A good PCB layout for the ISL32172EFBZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to place the device close to the power supply and use a decoupling capacitor between the VCC and GND pins.
To ensure the ISL32172EFBZ operates within its specified temperature range, it's essential to provide adequate heat sinking, especially in high-power applications. A thermal pad on the bottom of the package can be connected to a heat sink or a thermal plane on the PCB to dissipate heat efficiently.
When handling the ISL32172EFBZ, it's essential to take precautions to prevent damage from electrostatic discharge (ESD). Use an ESD wrist strap or mat, handle the device by the package body, and avoid touching the pins or leads. Also, avoid bending or flexing the leads, as this can cause mechanical stress and damage to the device.
To troubleshoot issues with the ISL32172EFBZ, start by verifying the power supply voltage, input voltage, and output voltage using an oscilloscope or multimeter. Check the PCB layout for any signs of noise or oscillations, and ensure that the device is properly decoupled. If the issue persists, consult the datasheet and application notes for guidance on troubleshooting and debugging.
To ensure EMC with the ISL32172EFBZ, it's essential to follow good PCB design practices, such as using a solid ground plane, minimizing trace lengths, and using shielding or filtering to reduce electromagnetic interference (EMI). Additionally, ensure that the device is properly decoupled, and consider using a common-mode choke or ferrite bead to reduce EMI emissions.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL32172EFBZ Overview

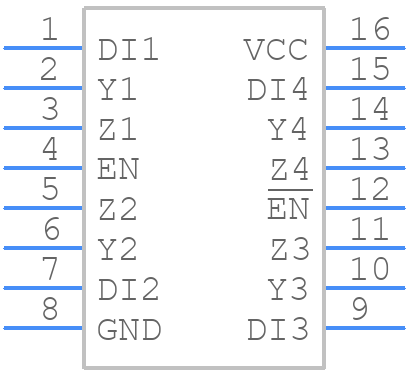

Use the download button to access the ISL32172EFBZ schematic symbol, PCB footprint, and 3D model.
