Description:The ISL32172E, ISL32272E, ISL32174E, and ISL32179E are ±16. 5kV IEC61000-4-2 ESD protected, 3. 0V to 5. 5V powered, QUAD transmitters for balanced communication using the RS-422 standard. These drivers have very low output leakage currents (±10µA), so they present a low load to the RS-422 bus. The driver (Tx) outputs are tri-statable and incorporate a hot plug feature to keep them disabled during power-up and power-down. The ISL32172E and ISL32272E have a common EN/EN, the ISL32174E has a two channel EN12/E
The recommended PCB layout for optimal performance involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure reliable operation over the entire operating temperature range, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and avoiding thermal hotspots. Additionally, the device should be operated within the recommended voltage and current ranges.
The ISL32174EIBZ-T has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. This includes using ESD-safe equipment, wearing ESD-protective clothing, and ensuring that the device is properly grounded during handling.
Yes, the ISL32174EIBZ-T is suitable for use in high-reliability or safety-critical applications, such as automotive, industrial, or medical devices. However, it's essential to follow proper design and testing procedures to ensure that the device meets the required safety and reliability standards.
The ISL32174EIBZ-T is designed to be radiation-tolerant and latch-up immune, but the specific characteristics may vary depending on the application and environment. It's recommended to consult with Renesas Electronics Corporation or a qualified radiation effects expert for more information.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL32174EIBZ-T Overview

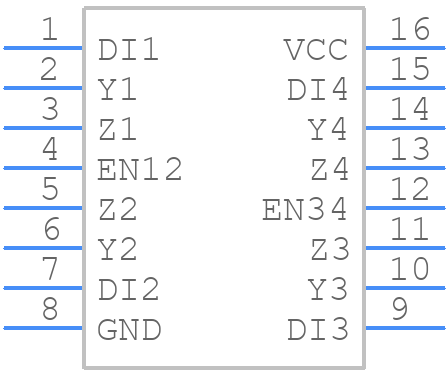

Use the download button to access the ISL32174EIBZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL32,
or try a keyword search, such as Line Driver or Receivers
