Description:The ISL32172E, ISL32272E, ISL32174E, and ISL32179E are ±16. 5kV IEC61000-4-2 ESD protected, 3. 0V to 5. 5V powered, QUAD transmitters for balanced communication using the RS-422 standard. These drivers have very low output leakage currents (±10µA), so they present a low load to the RS-422 bus. The driver (Tx) outputs are tri-statable and incorporate a hot plug feature to keep them disabled during power-up and power-down. The ISL32172E and ISL32272E have a common EN/EN, the ISL32174E has a two channel EN12/E
A good PCB layout for the ISL32272EFBZ-T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals to minimize noise and interference.
To ensure reliable operation over the entire operating temperature range, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and avoiding thermal hotspots. Additionally, ensure that the device is operated within its specified voltage and current limits.
Operating the ISL32272EFBZ-T at a lower voltage than the recommended 3.3V may result in reduced performance, increased power consumption, and potential reliability issues. Operating at a higher voltage may result in increased power consumption, heat generation, and potentially reduced lifespan. It's recommended to operate the device within the specified voltage range for optimal performance and reliability.
To troubleshoot issues with the I2C interface, start by verifying that the clock and data lines are properly connected and terminated. Check the I2C bus voltage levels, clock frequency, and data transmission rates to ensure they are within the specified limits. Use an oscilloscope or logic analyzer to monitor the I2C bus signals and identify any errors or anomalies.
The ISL32272EFBZ-T has built-in ESD protection diodes on all pins, which can withstand up to 2kV of ESD voltage. To prevent latch-up, it's essential to follow proper PCB design and layout practices, such as using a solid ground plane, minimizing signal trace lengths, and avoiding parallel signal paths.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL32272EFBZ-T Overview

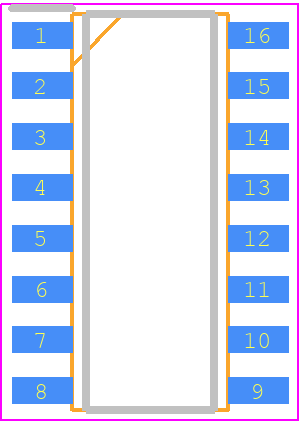

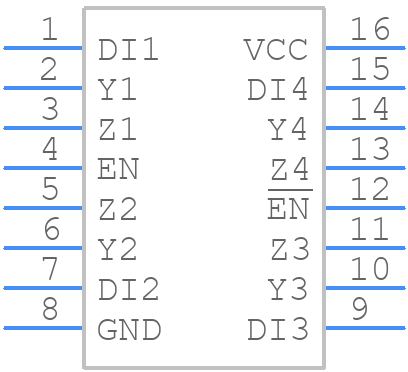

Use the download button to access the ISL32272EFBZ-T schematic symbol, PCB footprint, and 3D model.
