Part Image

ISL32275EFVZ - Renesas Electronics

Description: These Renesas devices are ±16. 5kV IEC61000-4-2 ESD protected, 3. 0V to 5. 5V powered, quad receivers for balanced communication using the RS-485 and RS-422 standards. Each receiver has low input currents (±200μA), so it presents a 1/4 unit load to the RS-485 bus and allows up to 128 receivers on the bus. The ISL32173E and ISL32177E are high data rate receivers that operate at data rates up to 80Mbps. Their 8ns maximum propagation delay skew (tolerance) ensures excellent part-to-part matching. The ISL32273E

Download ISL32275EFVZ Model

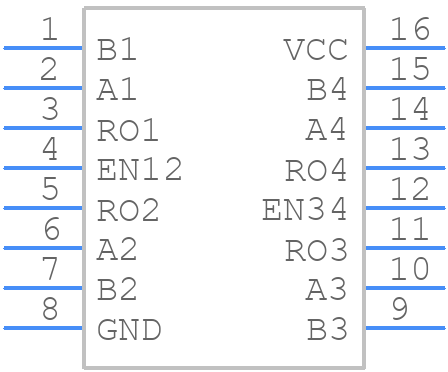

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ISL32275EFVZ - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - 16 LD
click to zoom
3D Models
ISL32275EFVZ - Renesas Electronics  - 3D model - Small Outline Packages - 16 LD
click to zoom

ISL32275EFVZ Details

  • Manufacturer Part Number:

    ISL32275EFVZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    M16.173

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    7

  • Additional Feature:

    LOGIC SUPPLY RANGING FROM 1.6 TO 5.5 IS AVAILABLE

  • Differential Output:

    NO

  • High Level Input Current-Max:

    0.00003 A

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE RECEIVER

  • Interface Standard:

    EIA-422; EIA-485

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Receive Delay-Max:

    55 ns

  • Receiver Number of Bits:

    4

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    5.5 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

ISL32275EFVZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a 10uF capacitor between VCC and GND, and a 100nF capacitor between VCC and AVCC.
  • Use a shielded cable, and consider using a common-mode choke or a ferrite bead to filter out high-frequency noise. Also, ensure that the RS-232 transceiver is properly terminated, and consider using a noise filter or a surge protector.
  • The maximum cable length depends on the baud rate and the type of cable used. As a general rule, the maximum cable length is 50 feet at 9600bps, 20 feet at 19200bps, and 10 feet at 38400bps. However, these lengths can be extended using repeaters or line drivers.
  • Use a TVS (Transient Voltage Suppressor) diode or a Zener diode to protect the device from ESD. Ensure that the ESD protection device is rated for the maximum voltage and current of the application.
  • Power up the device in the following sequence: VCC, then VREF, then the input signals. Ensure that the power supply is stable and within the recommended operating range before applying input signals.
