Description:These Renesas devices are ±16. 5kV IEC61000-4-2 ESD protected, 3. 0V to 5. 5V powered, quad receivers for balanced communication using the RS-485 and RS-422 standards. Each receiver has low input currents (±200μA), so it presents a 1/4 unit load to the RS-485 bus and allows up to 128 receivers on the bus. The ISL32173E and ISL32177E are high data rate receivers that operate at data rates up to 80Mbps. Their 8ns maximum propagation delay skew (tolerance) ensures excellent part-to-part matching. The ISL32273E
A good PCB layout for the ISL32275EIBZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to place the bypass capacitors as close as possible to the device's power pins.
To ensure proper power-up and initialization of the ISL32275EIBZ, make sure to follow the recommended power-up sequence, which involves applying the analog power supply (VCC) before the digital power supply (VDD). Also, ensure that the device is properly reset by pulling the RESET pin low during power-up.
When selecting external capacitors for the ISL32275EIBZ, consider the capacitor's equivalent series resistance (ESR), capacitance value, and voltage rating. A low ESR and a capacitance value of 1uF to 10uF are recommended. Also, ensure the capacitor's voltage rating is higher than the maximum voltage of the device.
To troubleshoot issues with the ISL32275EIBZ, start by verifying the power supply voltages and ensuring that the device is properly powered up and initialized. Check the input and output signals using an oscilloscope to identify any anomalies. Also, review the device's configuration and programming to ensure it is set up correctly.
The ISL32275EIBZ has a maximum junction temperature of 150°C. To ensure reliable operation over temperature, ensure good thermal conduction between the device and the PCB, and provide adequate airflow to dissipate heat. Also, consider using thermal pads or heat sinks to reduce the device's thermal resistance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL32275EIBZ Overview

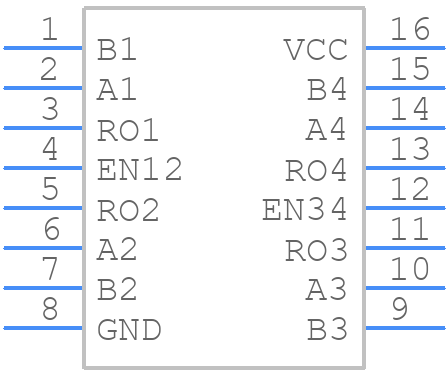

Use the download button to access the ISL32275EIBZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL32,
or try a keyword search, such as Line Driver or Receivers
