Description:The ISL3232E, ISL4221E, and ISL4223E devices are 2. 7V to 5. 5V powered RS-232 transmitters/receivers that meet ElA/TIA-232 and V. 28/V. 24 specifications, even at VCC = 3. 0V. They provide ±15kV ESD protection (IEC61000-4-2 Air Gap and Human Body Model) on transmitter outputs and receiver inputs (RS-232 pins). Targeted applications are PDAs, Palmtops, and hand-held products where the low operational power consumption and even lower standby power consumption are critical. Efficient on-chip charge pumps, cou
A good PCB layout for the ISL3232EIRZ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the signal sources to minimize noise. Additionally, using a shielded cable or a twisted pair for the RS-232 signals can help reduce EMI.
To ensure reliable communication in a noisy industrial environment, use a shielded cable, keep the cable length as short as possible, and use a common mode choke or ferrite bead to filter out high-frequency noise. Additionally, consider using a surge protector or a TVS diode to protect the device from voltage surges.
The maximum cable length supported by the ISL3232EIRZ depends on the baud rate and the cable quality. As a general rule, the maximum cable length is 50 feet (15.24 meters) at 9600 bps, 20 feet (6.1 meters) at 19,200 bps, and 10 feet (3.05 meters) at 38,400 bps. However, it's recommended to use a shorter cable length to ensure reliable communication.
To troubleshoot communication issues with the ISL3232EIRZ, check the cable connections, ensure that the device is properly powered, and verify that the baud rate and data format are correctly set. Use a logic analyzer or an oscilloscope to monitor the signal quality and detect any errors. Also, check the device's datasheet for any specific troubleshooting guidelines.
Yes, the ISL3232EIRZ is designed to support hot-swapping, but it's essential to ensure that the device is properly powered down before disconnecting or connecting the cable. Additionally, use a hot-swap controller or a power switch to control the power supply to the device during hot-swapping.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL3232EIRZ Overview

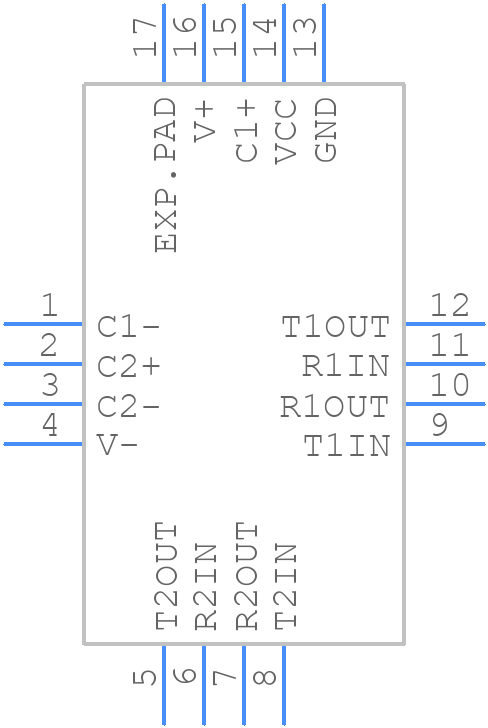

Use the download button to access the ISL3232EIRZ schematic symbol, PCB footprint, and 3D model.
