ISL32470EIBZ-T7A - Renesas Electronics

ISL32470EIBZ-T7A Details

• Manufacturer Part Number:

  ISL32470EIBZ-T7A

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SOICN

• Package Description:

  SOP-14

• Pin Count:

  14

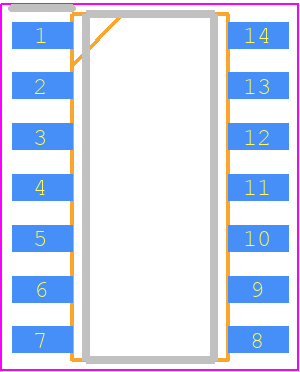

• Manufacturer Package Code:

  M14.15

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Differential Output:

  YES

• Driver Number of Bits:

  1

• High Level Input Current-Max:

  0.000015 A

• Input Characteristics:

  DIFFERENTIAL SCHMITT TRIGGER

• Interface IC Type:

  LINE TRANSCEIVER

• Interface Standard:

  EIA-485-A; TIA-485-A; EIA-422

• JESD-30 Code:

  R-PDSO-G14

• Length:

  8.65 mm

• Moisture Sensitivity Level:

  2

• Number of Functions:

  1

• Number of Terminals:

  14

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Out Swing-Min:

  0.8 V

• Output Characteristics:

  3-STATE

• Output Low Current-Max:

  0.006 A

• Output Polarity:

  COMPLEMENTARY

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP14,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Packing Method:

  TR

• Peak Reflow Temperature (Cel):

  260

• Receive Delay-Max:

  280 ns

• Receiver Number of Bits:

  1

• Seated Height-Max:

  1.75 mm

• Supply Current-Max:

  4.5 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  5 V

• Supply Voltage1-Max:

  5.5 V

• Supply Voltage1-Min:

  4.5 V

• Supply Voltage1-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  BICMOS

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Transmit Delay-Max:

  450 ns

• Width:

  3.9 mm
