Description:The ISL32483E and ISL32485E (ISL3248xE) are fault protected, 5V powered differential transceivers that exceed the RS‑485 and RS‑422 standards for balanced communication. The RS‑485 transceiver pins (driver outputs and receiver inputs) are fault protected up to ±60V and are protected against ±16. 5kV ESD strikes without latch‑up. Additionally, the extended common-mode range allows these transceivers to operate in environments with common‑mode voltages up to ±25V (>2X the RS‑485 requirement), making this faul
A good PCB layout for the ISL32483EIBZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI. Renesas provides a recommended PCB layout in the application note AN1995.
To ensure reliable operation over the full temperature range, it's essential to follow proper thermal design and layout guidelines, including providing adequate heat sinking, using thermal vias, and keeping the device away from heat sources. Additionally, ensure that the device is operated within its specified temperature range and that the power supply is stable and regulated.
To mitigate EMI and RFI, use a shielded enclosure, keep the device away from antennas and other RF sources, and use filtering and shielding on the input and output lines. Additionally, ensure that the PCB layout is designed to minimize radiation and that the device is operated within its specified frequency range.
To troubleshoot common issues, start by checking the power supply and ensuring it's stable and regulated. Verify that the device is operated within its specified voltage and current ranges. Use an oscilloscope to check for noise and oscillation, and ensure that the PCB layout is correct and follows the recommended guidelines. Consult the datasheet and application notes for specific troubleshooting guidance.
Using a different voltage supply than the recommended 3.3V or 5V may affect the device's performance, power consumption, and reliability. Consult the datasheet and application notes for specific guidance on voltage supply tolerance and ensure that the device is operated within its specified voltage range.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL32483EIBZ Overview

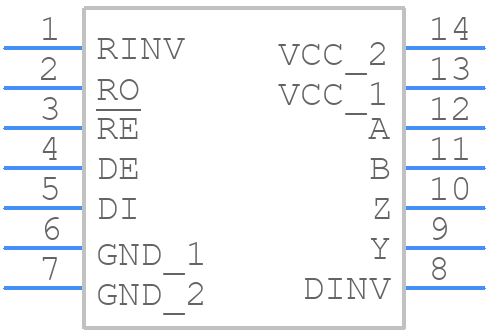

Use the download button to access the ISL32483EIBZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL32,
or try a keyword search, such as Line Driver or Receivers
