Description:The ISL32490E, ISL32492E, ISL32493E, ISL32495E, ISL32496E, and ISL32498E are fault protected, 5V powered, differential transceivers that exceed the RS-485 and RS-422 standards for balanced communication. The RS-485 transceiver pins (driver outputs and receiver inputs) are fault protected up to ±60V and are protected against ±16. 5kV ESD strikes without latch-up. Additionally, the extended Common-Mode Range (CMR) allows these transceivers to operate in environments with common-mode voltages up to ±25V (>2x t
A good PCB layout for the ISL32496EIBZ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
To ensure reliable operation over the entire operating temperature range, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and avoiding thermal gradients. Additionally, ensure that the device is operated within its specified voltage and current limits.
Operating the ISL32496EIBZ at a lower supply voltage than recommended may result in reduced performance, increased power consumption, and potential reliability issues. Operating at a higher supply voltage than recommended may result in increased power consumption, reduced reliability, and potential damage to the device.
To troubleshoot issues with the device's output signal, start by verifying that the input signal is within the specified range and that the device is properly powered. Check for any signs of oscillation, noise, or distortion on the output signal. Use an oscilloscope to visualize the output signal and identify any anomalies. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
The ISL32496EIBZ has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during device handling and PCB assembly. Use ESD-safe materials, tools, and equipment, and ensure that the device is properly grounded during handling and testing.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL32496EIBZ Overview

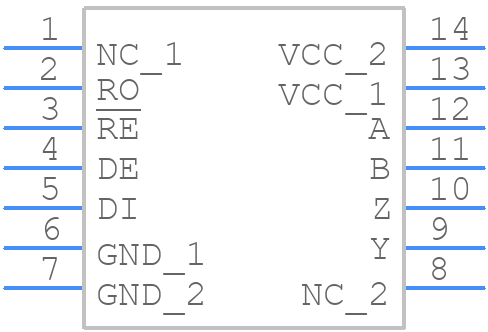

Use the download button to access the ISL32496EIBZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL32,
or try a keyword search, such as Line Driver or Receivers
