Description:The ISL3259E is a ±15kV IEC61000 ESD Protected, 5V powered, single transceiver that meets both the RS-485 and RS-422 standards for balanced communication. It also features the larger output voltage and higher data rate (up to 100Mbps) required by high speed PROFIBUS applications. The low bus currents (+220μA/-150μA) present a 1/5 unit load to the RS-485 bus. This allows up to 160 transceivers on the network without violating the RS-485 specification’s load limit, and without using repeaters. This transceive
The recommended PCB layout for optimal performance involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure reliable operation over the entire operating temperature range, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and avoiding thermal hotspots. Additionally, the device should be operated within the recommended operating conditions, and the power supply should be stable and well-regulated.
The ISL3259EIRZ-T has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. This includes using ESD-safe materials, grounding oneself before handling the device, and avoiding static-generating activities near the device.
To troubleshoot issues with the device's output voltage regulation, start by verifying the input voltage and ensuring it's within the recommended range. Check the output voltage using a multimeter and ensure it's within the specified tolerance. If the output voltage is not regulated, check the feedback resistors and capacitors for correct values and connections. Also, verify that the device is not overheating and that the power supply is stable and well-regulated.
When using the ISL3259EIRZ-T in a high-reliability or safety-critical application, it's essential to follow proper design and testing procedures to ensure the device operates within its specified parameters. This includes performing thorough testing and validation, using redundant or fault-tolerant designs, and following industry-specific standards and guidelines.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL3259EIRZ-T Overview

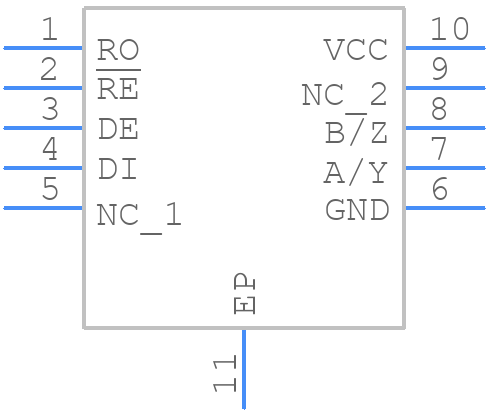

Use the download button to access the ISL3259EIRZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL32,
or try a keyword search, such as Line Driver or Receivers
