ISL32704EIBZ - Renesas Electronics

Description: The ISL32704E is a galvanically isolated, differential bus transceiver designed for bidirectional data transmission and meeting the RS-485 and RS-422 standards for balanced communication. Each of the bus terminals, A and B, is protected against ±15kV ESD strikes without latch-up. The device uses giant magnetoresistance (GMR) as isolation technology. A unique ceramic/polymer composite barrier provides excellent isolation and virtually unlimited barrier life. The part is available in a 16 Ld QSOP package offe

Download ISL32704EIBZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

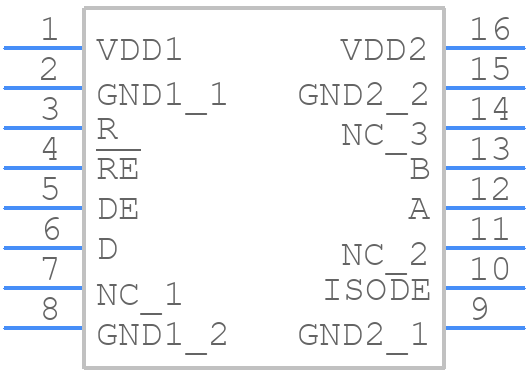

ISL32704EIBZ - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL32704EIBZ - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - M16.3A
click to zoom
3D Models
ISL32704EIBZ - Renesas Electronics - 3D model - Small Outline Packages - M16.3A
click to zoom

ISL32704EIBZ Details

  • Manufacturer Part Number:

    ISL32704EIBZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOICW

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    M16.3A

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-485; EIA-422

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    10.285 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    1.5 V

  • Output Low Current-Max:

    0.06 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Receive Delay-Max:

    150 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    2.67 mm

  • Supply Current-Max:

    16 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    4.5 V

  • Supply Voltage1-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.3 mm

  • Terminal Position:

    DUAL

  • Transmit Delay-Max:

    150 ns

  • Width:

    7.505 mm

ISL32704EIBZ Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in the application note AN1995, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize EMI.
  • The ISL32704EIBZ has a thermal pad that must be connected to a thermal plane on the PCB to dissipate heat. A thermal interface material (TIM) can be used to improve heat transfer. Additionally, the device has a thermal shutdown feature that turns off the output when the junction temperature exceeds 150°C.
  • Renesas recommends using a low-ESR ceramic capacitor with a value of 10uF to 22uF for the input capacitor. The capacitor should be placed as close as possible to the VIN pin to minimize noise and ensure stable operation.
  • The output voltage of the ISL32704EIBZ can be adjusted by connecting a resistive divider network between the VOUT pin and the GND pin. The resistors should be chosen to provide a voltage divider ratio that sets the desired output voltage. Renesas provides a calculation formula in the datasheet to determine the required resistor values.
  • The ISL32704EIBZ has a maximum output current capability of 4A. However, the actual output current capability may be limited by the input voltage, output voltage, and thermal conditions. Renesas provides a current derating curve in the datasheet to help determine the maximum output current capability under specific operating conditions.
