Description:The ISL32705E is a galvanically isolated, full-duplex differential bus transceiver, designed for bidirectional data transmission meeting the RS-485 and RS-422 standards for balanced communication. All bus terminals are protected against ±7kV ESD strikes without latch-up. The device uses Giant Magnetoresistance (GMR) as isolation technology. A unique ceramic/polymer composite barrier provides excellent isolation and nearly unlimited barrier life. The part is available in a 16 Ld wide-body SOIC package provid
A good PCB layout for the ISL32705EIBZ-T7A involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the signal traces. Additionally, it's recommended to place the device close to the power source and use a low-ESR capacitor for decoupling.
To ensure proper power-up and configuration, follow the recommended power-up sequence, which involves applying VCC before applying VDD. Also, make sure to configure the device according to the datasheet recommendations, including setting the correct voltage levels and configuring the I/O pins.
The ISL32705EIBZ-T7A has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking, use a thermal pad or heat sink, and ensure good airflow around the device. Additionally, follow the recommended thermal design guidelines to prevent overheating.
To troubleshoot issues with the ISL32705EIBZ-T7A, start by reviewing the datasheet and application notes to ensure correct configuration and usage. Use oscilloscopes or logic analyzers to monitor the signals and identify the source of the issue. Also, check for any firmware or software updates that may resolve the problem.
The ISL32705EIBZ-T7A has built-in ESD protection, but it's still essential to follow proper handling and storage procedures to prevent damage. Additionally, follow the recommended PCB design guidelines to prevent latch-up, such as using a solid ground plane and minimizing the length of signal traces.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL32705EIBZ-T7A Overview

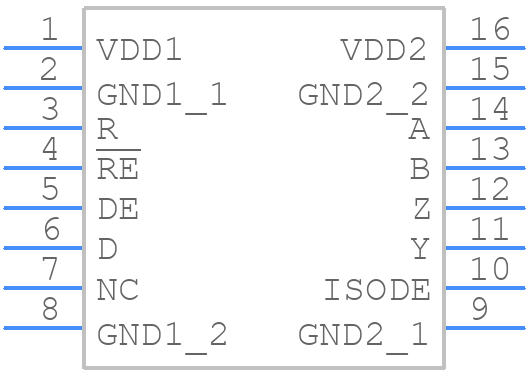

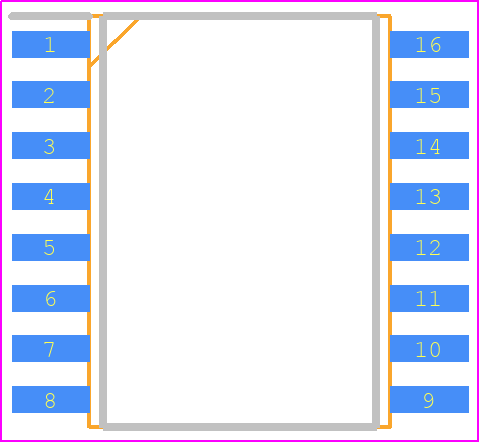

Use the download button to access the ISL32705EIBZ-T7A schematic symbol, PCB footprint, and 3D model.
