Description:The Intersil ISL3282EMRTEP is a ±16. 5kV IEC61000 ESD protected, 3. 0V to 5. 5V powered, single receiver that meets both the RS-485 and RS-422 standards for balanced communication. This receiver has very low bus currents (+125μA/-100μA), so it presents a true “1/8 unit load” to the RS-485 bus. This allows up to 256 receivers on the network without violating the RS-485 specification’s 32 unit load maximum and without using repeaters. Receiver inputs feature a “Full Fail-Safe” design, which ensures a logic hi
Renesas provides a recommended PCB layout guide in the application note AN1995, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize EMI.
The device is rated for operation from -40°C to 125°C. Ensure proper thermal management by providing adequate heat sinking, using thermal interface materials, and keeping the device away from heat sources. Monitor the device temperature using the internal temperature sensor or an external thermometer.
The maximum cable length supported by the ISL3282EMRTEP-TK depends on the specific application and the type of cable used. As a general guideline, Renesas recommends keeping the cable length below 10 meters for RS-485 applications and below 100 meters for RS-422 applications. However, longer cable lengths may be possible with proper termination and signal conditioning.
Renesas provides a troubleshooting guide in the application note AN1996, which covers common issues and their solutions. Additionally, use oscilloscopes or logic analyzers to monitor the signal waveforms and identify potential issues. Check the device configuration, cable connections, and power supply for any anomalies.
The ISL3282EMRTEP-TK is designed to be compatible with other Renesas devices and third-party components that operate within the same voltage and frequency ranges. However, ensure compatibility by checking the device specifications, datasheets, and application notes for any specific requirements or recommendations.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL3282EMRTEP-TK Overview

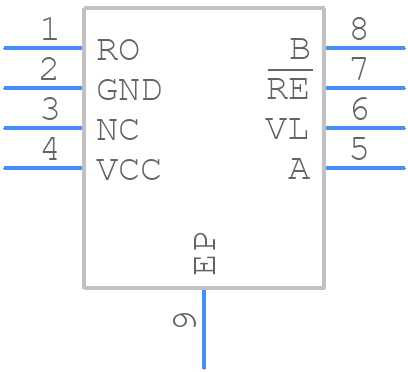

Use the download button to access the ISL3282EMRTEP-TK schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL32,
or try a keyword search, such as Line Driver or Receivers
