Description:The ISL3298EMRTEP is a ±16. 5kV HBM ESD Protected (7kV IEC61000 contact), 3. 0V to 5. 5V powered, single transmitter for balanced communication using the RS-485 and RS-422 standards. This driver has very low bus currents (±40mA); therefore, it presents less than a 1/8 unit load to the RS-485 bus. This allows more than 256 transmitters on the network without violating the RS-485 specification 32 unit load maximum, and without using repeaters. Hot Plug circuitry ensures that the Tx outputs remain in a high im
Renesas provides a recommended PCB layout in the application note AN1965, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize EMI.
The ISL3298EMRTEP-TK is a highly configurable device, and the configuration depends on the specific communication protocol required. Renesas provides a software development kit (SDK) and application notes that provide examples and guidelines for configuring the device for various protocols such as RS-232, RS-485, and others.
The maximum cable length supported by the ISL3298EMRTEP-TK depends on the communication protocol, data rate, and cable characteristics. As a general guideline, Renesas recommends a maximum cable length of 1000 feet (305 meters) for RS-232 and 4000 feet (1219 meters) for RS-485, but this can be extended with the use of repeaters or other signal conditioning devices.
To ensure EMC with the ISL3298EMRTEP-TK, follow the guidelines in the application note AN1965, which provides recommendations for PCB layout, component selection, and shielding to minimize EMI and ensure compliance with relevant EMC standards.
The ISL3298EMRTEP-TK has an operating temperature range of -40°C to +85°C, making it suitable for use in a wide range of industrial and commercial applications.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL3298EMRTEP-TK Overview

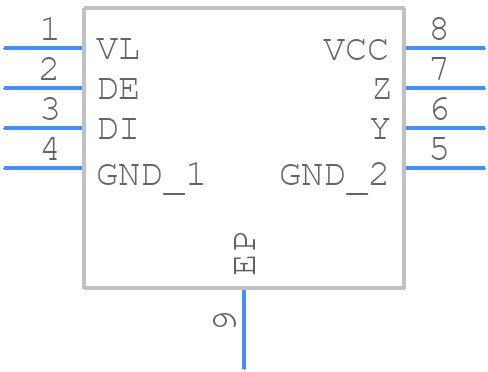

Use the download button to access the ISL3298EMRTEP-TK schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL32,
or try a keyword search, such as Line Driver or Receivers
