Description:The ISL33002 two-channel bus buffer provides the buffering necessary to extend the bus capacitance beyond the 400pF maximum specified by the I2C specification. In addition, the ISL33002 features rise time accelerator circuitry to reduce power consumption from passive bus pull-up resistors and improve data-rate performance. The device also includes hot-swap circuitry to prevent corruption of the data and clock lines when I2C devices are plugged into a live backplane, and the ISL33002 adds level translation f
A good PCB layout for the ISL33002 involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
To ensure proper power-up and initialization, make sure to follow the recommended power-up sequence, which is to apply VCC first, followed by VDD. Also, ensure that the EN pin is high during power-up and that the input voltage is within the recommended range. Finally, allow the device to settle for at least 10ms before applying a clock signal.
The ISL33002 can support clock frequencies up to 100MHz, but the maximum frequency may vary depending on the specific application and operating conditions. It's recommended to consult the datasheet and application notes for more information on clock frequency limitations.
Thermal management is critical for the ISL33002, especially in high-power applications. Ensure good airflow around the device, and consider using a heat sink or thermal pad to dissipate heat. Also, follow the recommended thermal design guidelines and thermal resistance calculations to ensure the device operates within its specified temperature range.
To protect the ISL33002 from electrostatic discharge (ESD), follow standard ESD handling procedures, such as using an ESD wrist strap or mat, and storing the device in an ESD-protected package. Additionally, consider adding external ESD protection devices, such as TVS diodes or ESD arrays, to the PCB design.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL33002IRT2Z-T Overview

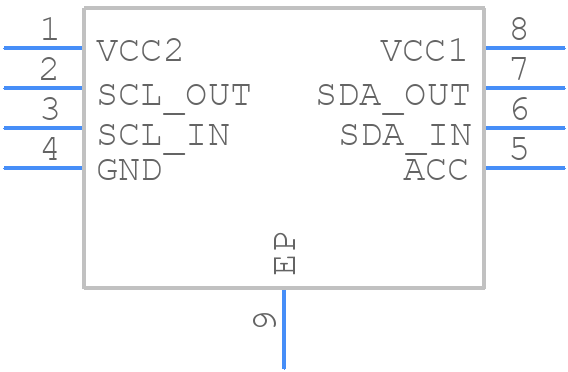

Use the download button to access the ISL33002IRT2Z-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL33,
or try a keyword search, such as Other Interface ICs
