ISL33002IRT2Z - Renesas Electronics

Description: The ISL33002 two-channel bus buffer provides the buffering necessary to extend the bus capacitance beyond the 400pF maximum specified by the I2C specification. In addition, the ISL33002 features rise time accelerator circuitry to reduce power consumption from passive bus pull-up resistors and improve data-rate performance. The device also includes hot-swap circuitry to prevent corruption of the data and clock lines when I2C devices are plugged into a live backplane, and the ISL33002 adds level translation f

Download ISL33002IRT2Z Model

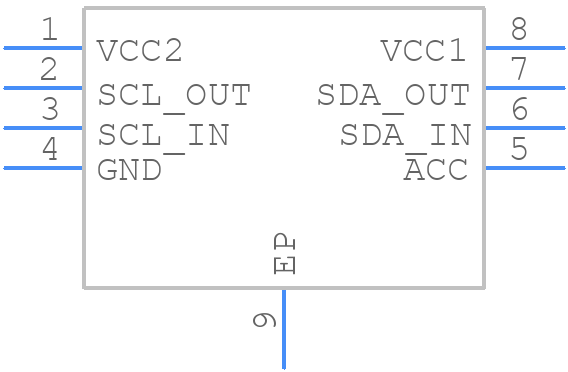

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ISL33002IRT2Z - Renesas Electronics PCB footprint - Small Outline No-lead - Small Outline No-lead - L8.3x3H
click to zoom
3D Models
ISL33002IRT2Z - Renesas Electronics  - 3D model - Small Outline No-lead - L8.3x3H
click to zoom

ISL33002IRT2Z Details

  • Manufacturer Part Number:

    ISL33002IRT2Z

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TDFN

  • Package Description:

    TDFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    L8.3X3H

  • Country Of Origin:

    Malaysia

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Date Of Intro:

    2017-10-13

  • Manufacturer:

    Renesas Electronics Corporation

  • Interface IC Type:

    BUS BUFFERS

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.3 V

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ISL33002IRT2Z Frequently Asked Questions (FAQs)

  • A good PCB layout for the ISL33002IRT2Z involves keeping the input and output traces short and wide, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper power-on and power-off sequencing, it's recommended to follow the power-up and power-down sequences outlined in the datasheet. This typically involves powering up the device in the following order: VCC, VIN, and then EN. When powering down, the sequence should be reversed.
  • The ISL33002IRT2Z has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking and airflow to keep the device within its recommended operating temperature range. A thermal pad on the bottom of the package can be connected to a heat sink or a thermal plane on the PCB to improve heat dissipation.
  • To troubleshoot issues with the ISL33002IRT2Z, start by verifying the power supply voltages and ensuring that the device is properly powered on and off. Check the input and output voltage levels, and verify that the device is operating within its recommended specifications. If issues persist, consult the datasheet and application notes for guidance on troubleshooting common problems.
  • To minimize electromagnetic interference (EMI) and ensure electromagnetic compatibility (EMC), it's recommended to follow good PCB design practices, such as using a solid ground plane, minimizing trace lengths, and using shielding where necessary. Additionally, the ISL33002IRT2Z has built-in EMI filtering, but it's still important to follow proper layout and design guidelines to ensure compliance with EMI and EMC regulations.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ISL33002IRT2Z Overview

Use the download button to access the ISL33002IRT2Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL33, or try a keyword search, such as Other Interface ICs
