Description:The ISL33334E, ISL33337E are two port interface ICs where port 1 is configured as a dual (2 Tx, 2 Rx) RS-232 transceiver and port 2 is a single RS-485/RS-422 transceiver. The on-board charge pump generates RS-232 compliant ±5V Tx output levels from a single VCC supply as low as 3. 15V. The transceivers are RS-232 compliant, with the Rx inputs handling up to ±25V. The port 2 transceiver supports both the RS-485 and RS-422 differential communication standards. The receiver features full fail-safe operation, s
The recommended PCB layout for optimal performance involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals to minimize noise and interference.
To ensure reliable operation over the entire operating temperature range, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and avoiding thermal hotspots. Additionally, it's recommended to characterize the device's performance over the entire operating temperature range during the design phase.
Potential sources of noise and interference in the ISL33334EIAZ-T include digital switching noise, power supply noise, and electromagnetic interference (EMI). These can be mitigated by using proper PCB layout techniques, such as separating analog and digital signals, using shielding, and implementing noise filtering and decoupling techniques.
To troubleshoot issues with the ISL33334EIAZ-T, it's essential to follow a systematic approach, starting with a thorough review of the datasheet and application notes. Next, verify that the device is properly powered and configured, and check for any signs of physical damage or overheating. Use oscilloscopes and logic analyzers to debug the device's behavior, and consult with Renesas Electronics Corporation's technical support team if necessary.
Yes, when using the ISL33334EIAZ-T in a high-reliability or safety-critical application, it's essential to follow proper design and verification practices, such as performing thorough testing and validation, using redundant or fault-tolerant designs, and implementing safety mechanisms to prevent or mitigate failures. Additionally, consult with Renesas Electronics Corporation's technical support team to ensure that the device meets the specific requirements of the application.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL33334EIAZ-T Overview

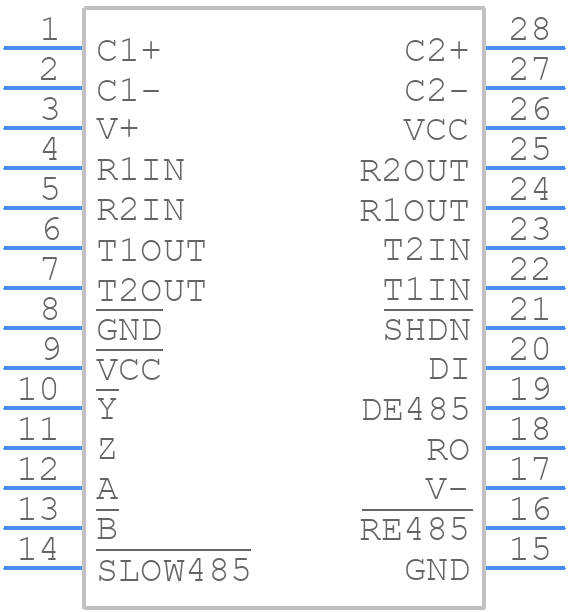

Use the download button to access the ISL33334EIAZ-T schematic symbol, PCB footprint, and 3D model.
