Description:The ISL33334E, ISL33337E are two port interface ICs where port 1 is configured as a dual (2 Tx, 2 Rx) RS-232 transceiver and port 2 is a single RS-485/RS-422 transceiver. The on-board charge pump generates RS-232 compliant ±5V Tx output levels from a single VCC supply as low as 3. 15V. The transceivers are RS-232 compliant, with the Rx inputs handling up to ±25V. The port 2 transceiver supports both the RS-485 and RS-422 differential communication standards. The receiver features full fail-safe operation, s
Renesas provides a recommended PCB layout guide in the ISL33334EIAZ evaluation board user manual, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
To ensure reliable operation over the full temperature range, it is essential to follow the recommended operating conditions, including voltage, current, and thermal management. Additionally, consider using thermal protection devices and implementing over-temperature protection in the system design.
The ISL33334EIAZ has built-in ESD protection diodes on all pins, and the device is designed to prevent latch-up. However, it is still recommended to follow proper ESD handling procedures during assembly and testing, and to use ESD protection devices in the system design if necessary.
Renesas provides a troubleshooting guide in the ISL33334EIAZ datasheet, which includes steps to identify and resolve common issues. Additionally, engineers can contact Renesas technical support for further assistance and guidance.
Yes, the ISL33334EIAZ has specific requirements for power sequencing and supply voltage ramp-up to ensure proper operation and prevent damage. The datasheet provides guidelines for power-up and power-down sequencing, and it is recommended to follow these guidelines to ensure reliable operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL33334EIAZ Overview

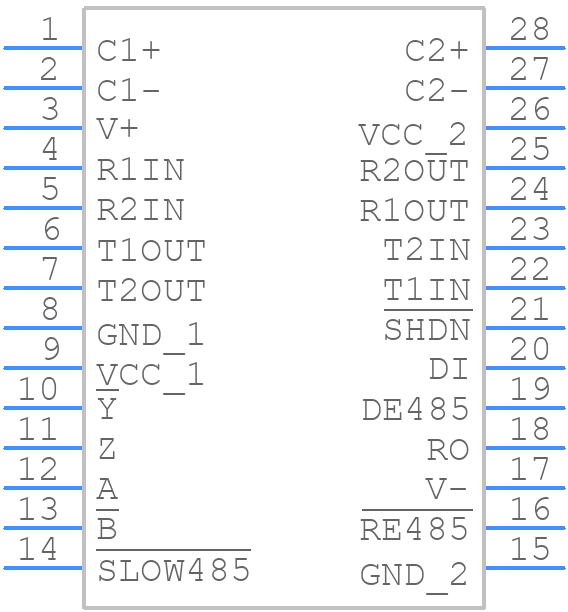

Use the download button to access the ISL33334EIAZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL33,
or try a keyword search, such as Line Driver or Receivers
