ISL35111DRZ-TS - Renesas Electronics

Description: The ISL35111 is a de-emphasis driver with extended functionality for advanced protocols operating with line rates up to 11.1Gbps such as 10G Ethernet. The ISL35111 is a high-speed driver/limiting amplifier with built-in de-emphasis to drive twin-axial copper cables and compensate for the frequency-dependent attenuation of PCB traces such as the SFI channel in the 10G SFP+ specification (SFF-8431). Used in conjunction with Renesas' ISL36111 receive-side equalizer, ISL35111 enables active copper cable assembl

Download ISL35111DRZ-TS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

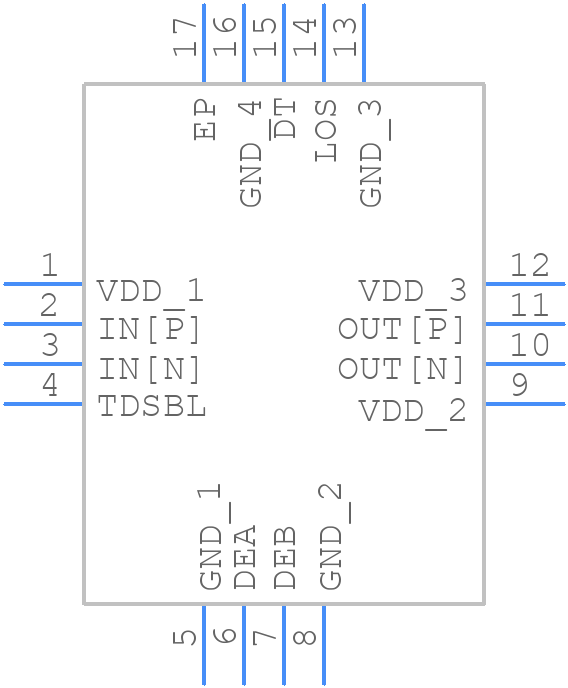

ISL35111DRZ-TS - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL35111DRZ-TS - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - L16.3x3B
click to zoom
3D Models
ISL35111DRZ-TS - Renesas Electronics - 3D model - Quad Flat No-Lead - L16.3x3B
click to zoom

ISL35111DRZ-TS Details

  • Manufacturer Part Number:

    ISL35111DRZ-TS

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    QFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    L16.3X3B

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Differential Output:

    YES

  • Interface IC Type:

    LINE DRIVER

  • Interface Standard:

    GENERAL PURPOSE

  • JESD-30 Code:

    S-PQCC-N16

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Out Swing-Min:

    0.45 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    75 mA

  • Supply Voltage-Max:

    1.3 V

  • Supply Voltage-Min:

    1.1 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ISL35111DRZ-TS Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout in the application note AN1995, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The ISL35111DRZ-TS requires a specific power-up sequence to ensure proper initialization. Refer to the datasheet section 7.1, 'Power-Up Sequence', for the recommended power-up procedure.
  • The maximum allowed capacitive load on the output of the ISL35111DRZ-TS is 10nF. Exceeding this limit may affect the stability of the output voltage.
  • Renesas provides a troubleshooting guide in the application note AN1996, which includes a step-by-step procedure to identify and resolve common issues with the ISL35111DRZ-TS.
  • Yes, the ISL35111DRZ-TS is compatible with lead-free soldering processes, such as RoHS and WEEE. However, it's essential to follow the recommended soldering profile and guidelines to ensure reliable assembly.
