ISL36111DRZ-T7 footprint, schematic symbol and 3D model by Renesas Electronics

ISL36111DRZ-T7 - Renesas Electronics

Description: The ISL36111 is a settable single-channel receive-side equalizer with extended functionality for advanced protocols operating with line rates up to 11.1Gb/s such as 10G Ethernet. The ISL36111 compensates for the frequency-dependent attenuation of copper twin-axial cables, extending the signal reach up to at least 10m on 28AWG cable. The small form factor, highly-integrated design is ideal for high-density data transmission applications including active copper cable assemblies. The equalizing filter within t

Download ISL36111DRZ-T7 Model

Schematic
symbols

PCB
footprints

3D
models

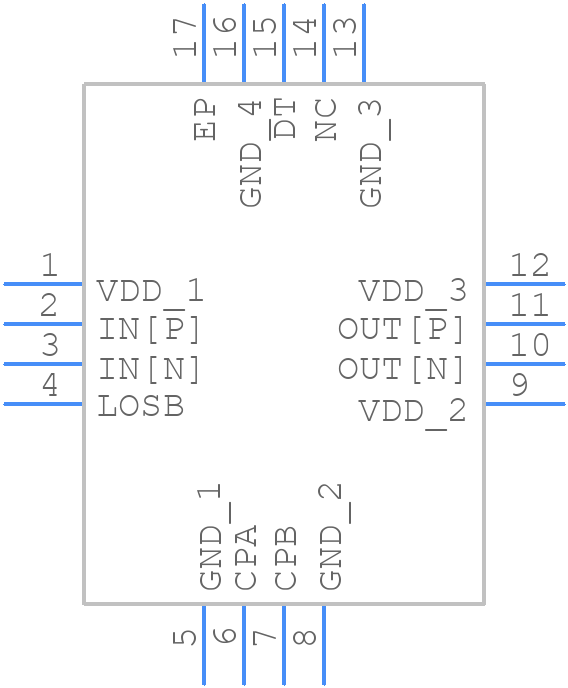

Symbol

click to zoom

PCB Footprints

ISL36111DRZ-T7 - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - L16.3x3B

click to zoom

3D Models

ISL36111DRZ-T7 - Renesas Electronics - 3D model - Quad Flat No-Lead - L16.3x3B

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ISL36111DRZ-T7
Part Number ISL36111DRZ-T7
Manufacturer Renesas Electronics
Pin Count 17
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - L16.3x3B
Released Date Dec 11, 2019
Last Modified Date Oct 24, 2023 7:30 PM UTC
Pinout / Pin List Click Here (Member Only)

ISL36111DRZ-T7 Details

Manufacturer Part Number:
ISL36111DRZ-T7
Manufacturer:
Renesas Electronics Corporation

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

ISL36111DRZ-T7 Overview

Use the download button to access the ISL36111DRZ-T7 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ISL36, or try a keyword search, such as Other Telecom ICs
