Description:The ISL4089 is a complete DC-restored monolithic video amplifier sub-system. It contains a high-performance video amplifier and a nulling, sample-and-hold amplifier designed to establish a programmable DC output level. When the HOLD logic input 0 is applied, the DC restore function is active. The sample-and-hold amplifier loop is closed and used to null the DC offset of the video amplifier. This can occur during sync, or, at any time that a black level is expected. When the HOLD input 1 is applied, the corr
Renesas provides a recommended PCB layout in the application note AN1443, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The ISL4089IBZ-T7A is rated for operation from -40°C to +125°C. To ensure operation within this range, ensure proper thermal management, such as providing adequate heat sinking, using thermal interface materials, and avoiding thermal hotspots on the PCB.
The ISL4089IBZ-T7A has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. Renesas recommends following the ESD protection guidelines in the JEDEC standard JESD625-A.
Yes, the ISL4089IBZ-T7A is qualified for use in high-reliability and automotive applications. Renesas provides additional documentation and support for these applications, including AEC-Q100 qualification and PPAP (Production Part Approval Process) documentation.
Renesas provides a troubleshooting guide in the application note AN1443, which covers common issues and their solutions. Additionally, Renesas offers technical support and resources, such as FAQs, application notes, and design tools, to help troubleshoot and resolve issues.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL4089IBZ-T7A Overview

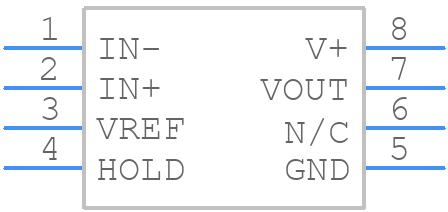

Use the download button to access the ISL4089IBZ-T7A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL40,
or try a keyword search, such as Audio/Video Amplifiers
